Overview
| Place of Origin: | China |
| Brand Name: | SDBM |
| Model Number: | BMP90 |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden box packaging |

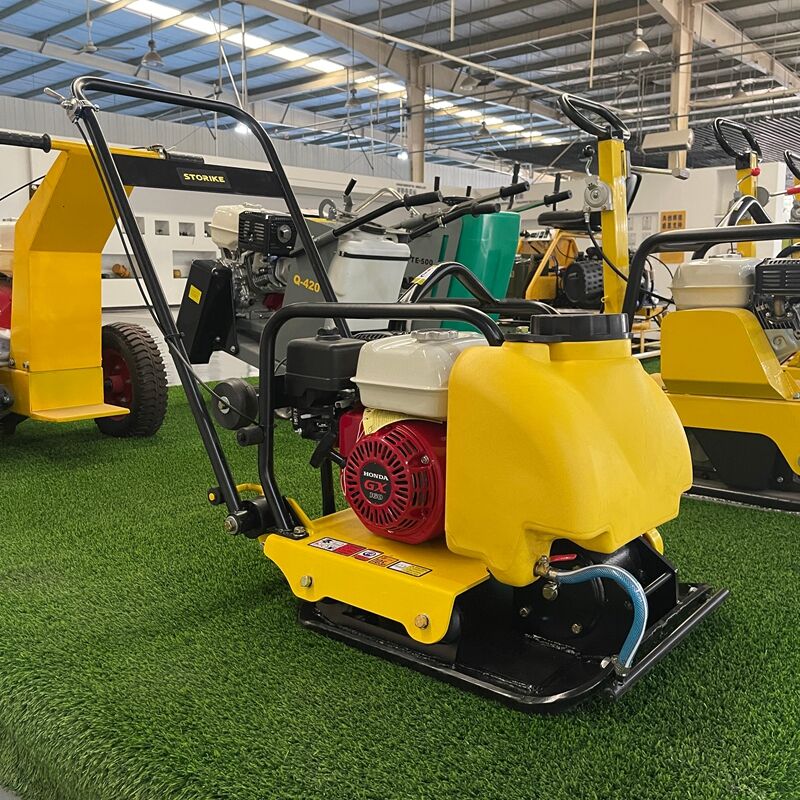

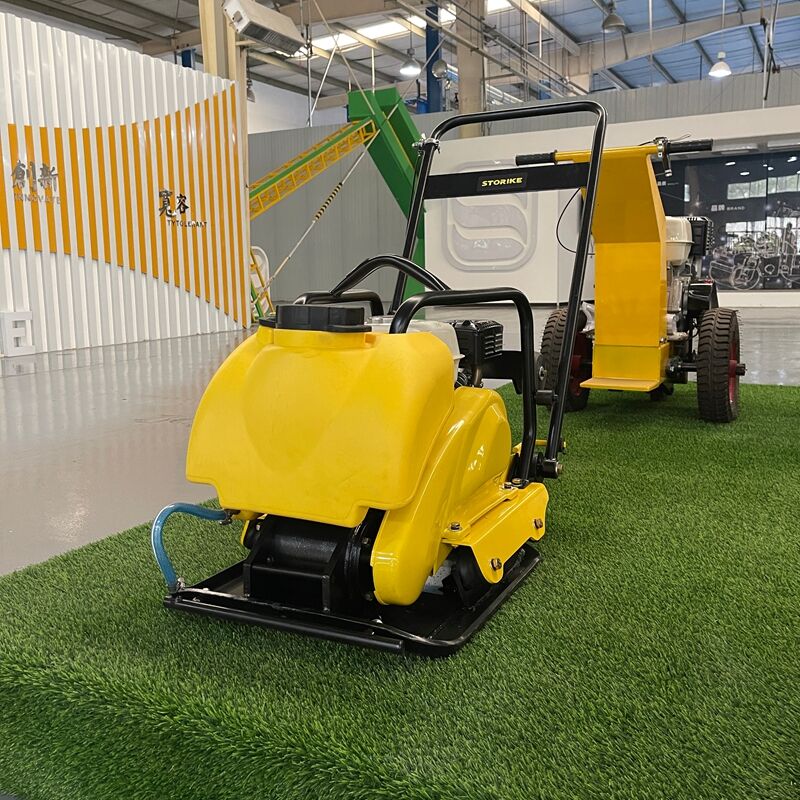

The SDBM BMP90 Plate Compactor is a powerful and efficient compaction machine designed for professional construction, road maintenance, landscaping, and foundation preparation applications.
Equipped with the reliable HONDA GX160 gasoline engine, the BMP90 delivers stable power output and excellent fuel efficiency. Combined with a high-performance vibration system, the machine provides strong compaction force and improved working efficiency for soil, gravel, and asphalt compaction.
With an 83 kg operating weight, 13 kN exciting force, and a maximum compaction depth of 30 cm, the BMP90 offers an excellent balance between power, portability, and durability. Its compact structure allows easy operation in narrow working areas while maintaining professional-grade compaction performance.
Specifications
| Model | BMP90 |
| Engine brand | HONDA |
| Engine model | GX160 |
| Engine type | Single cylinder air-cooled four stroke |
| Number | 1 |
| Power | 5.5 HP |
| Operating weight | 83 KG |
| Rotational speed | 5500 rpm |
| Exciting force | 13 kn |
| Compacting depth | 30 cm |
| Travel speed | 40 cm/s |
| Working efficiency | 660 (M^2)/hr |
| Plate size | 53*50 cm |
| Working size | 110*50*85 cm |

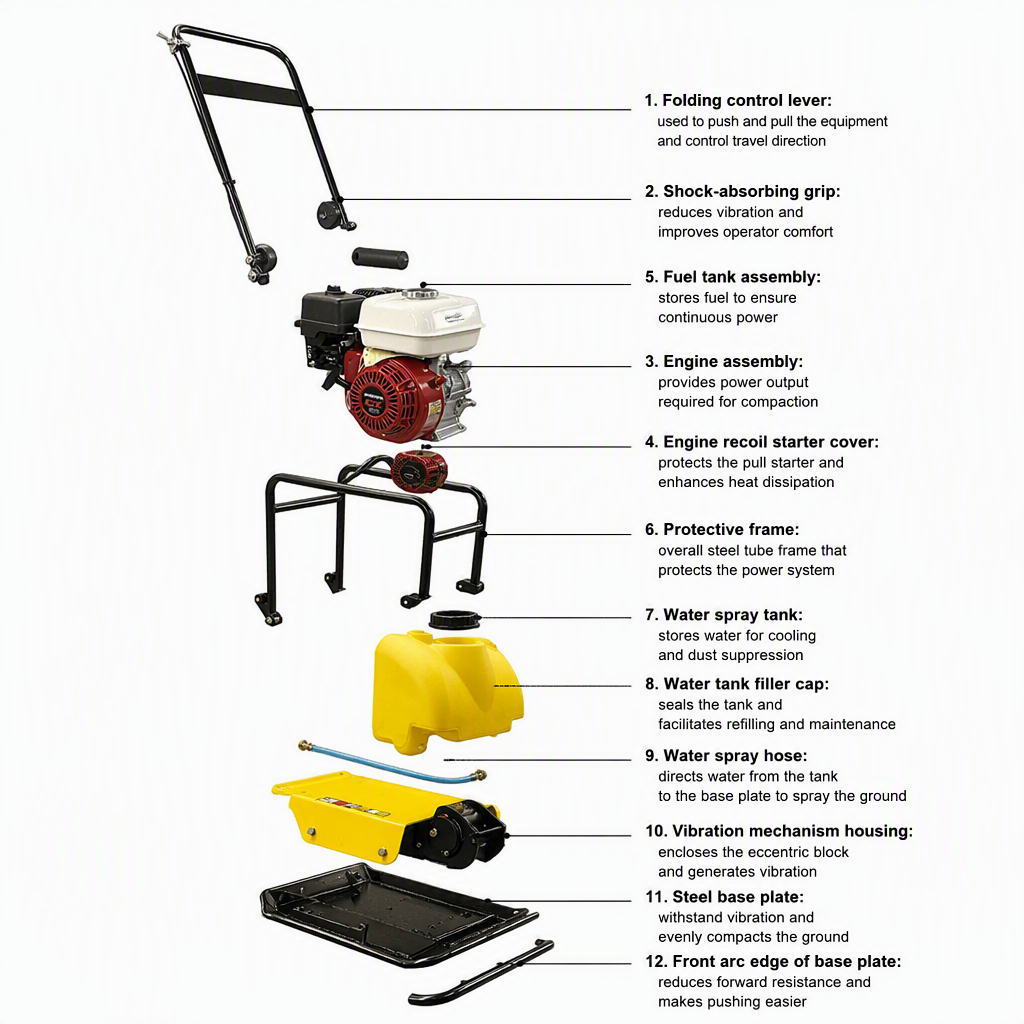

Description
-

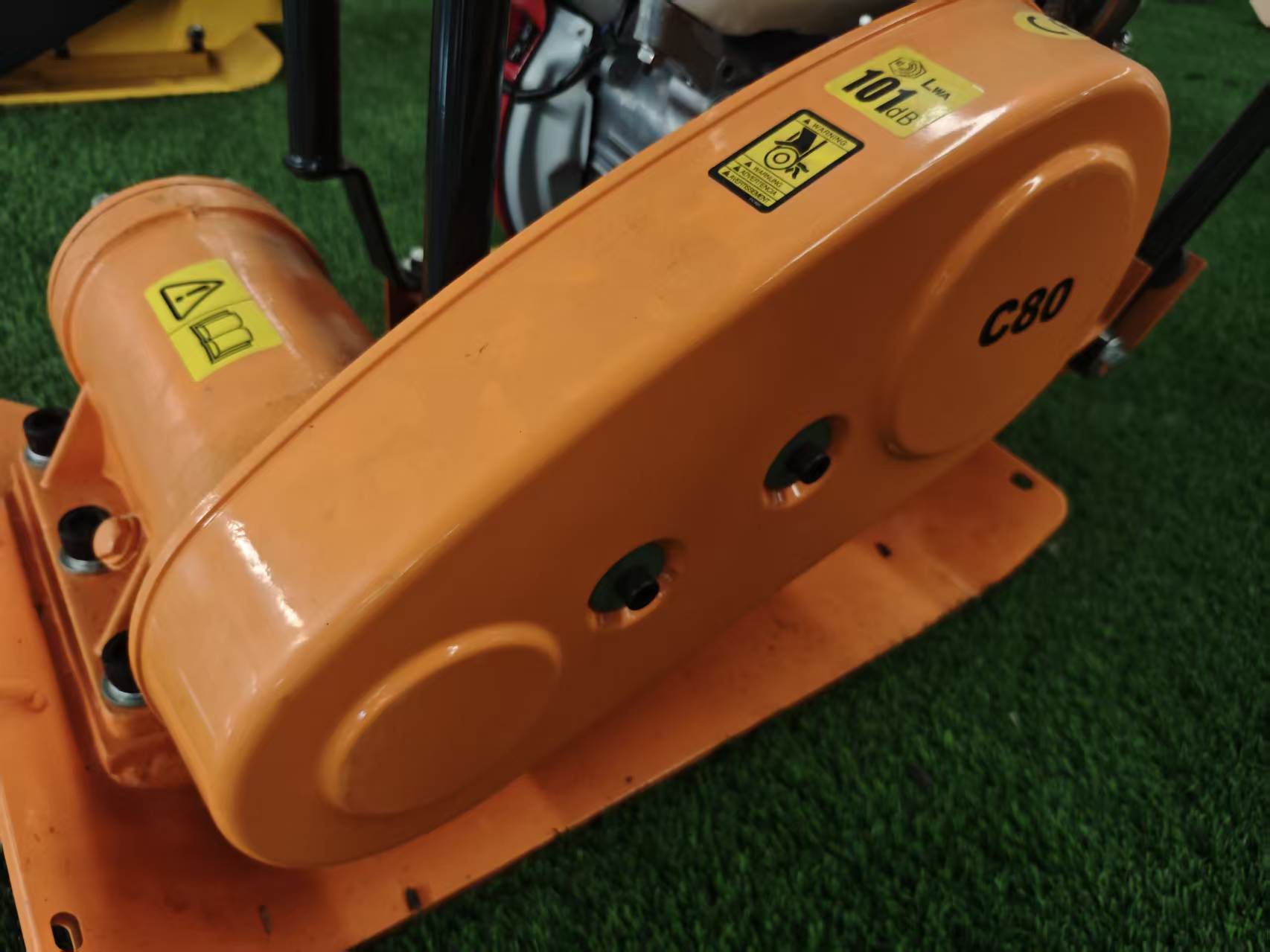

Protective cover
-

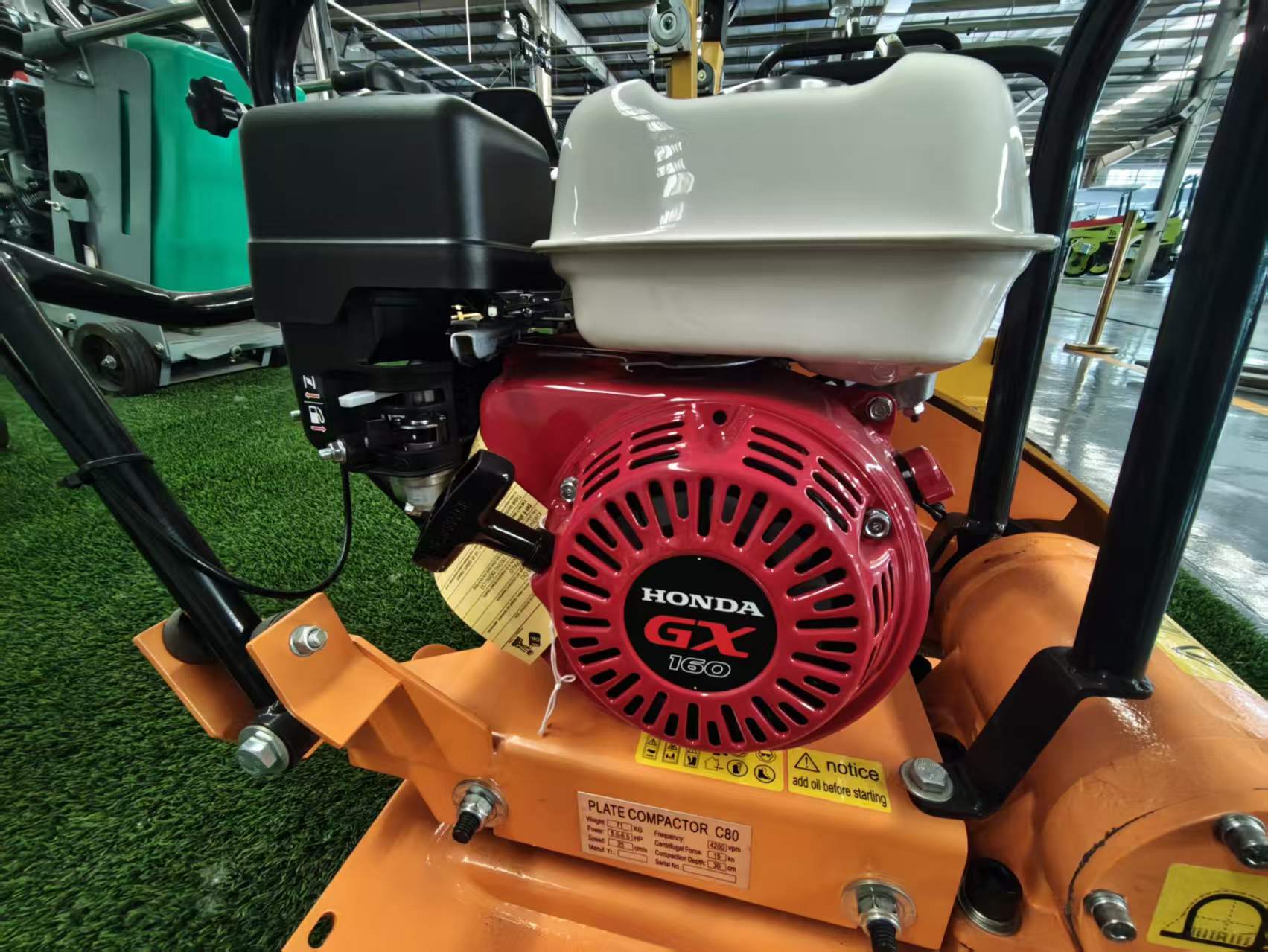

engine
-

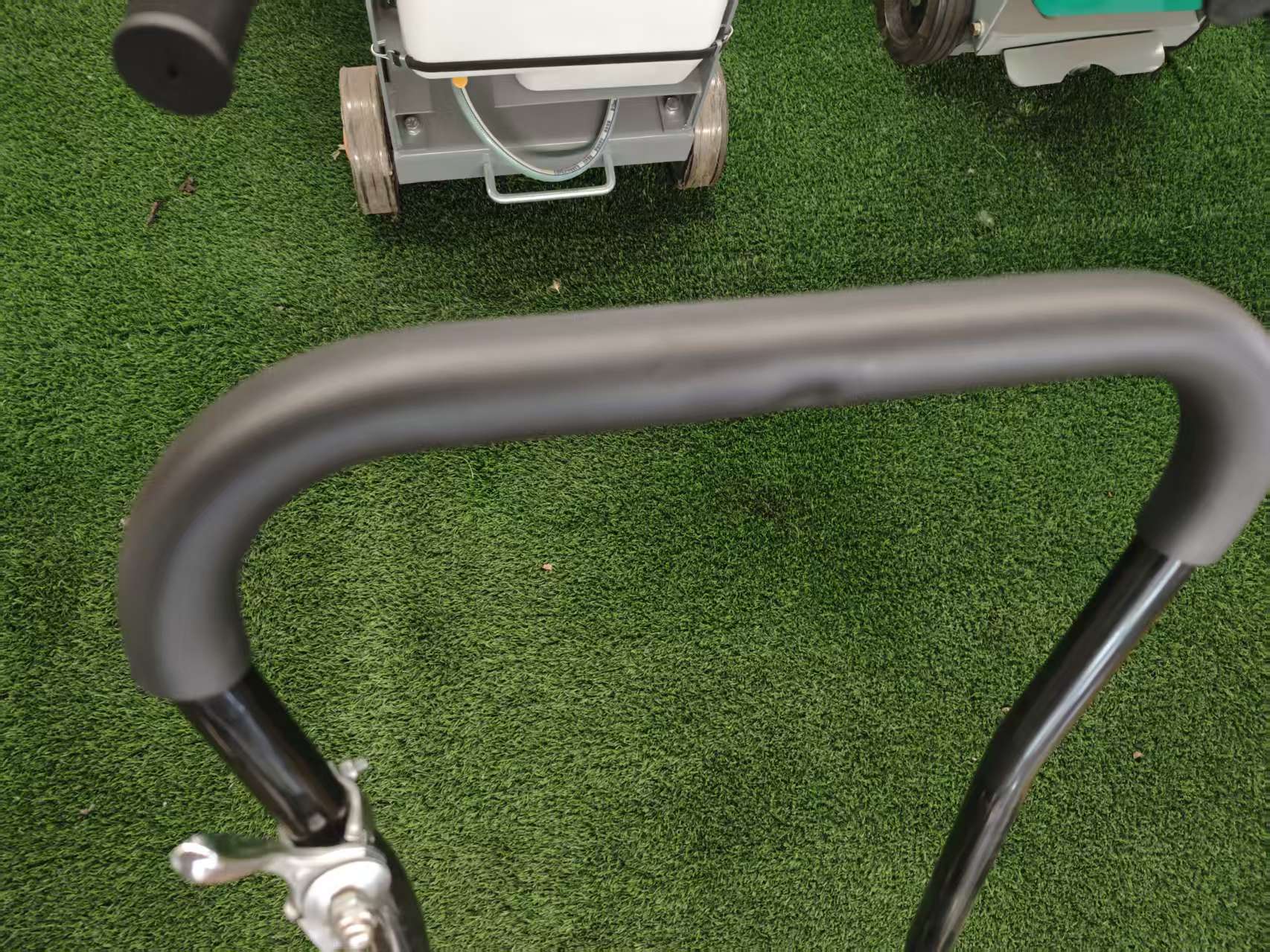

armrest -

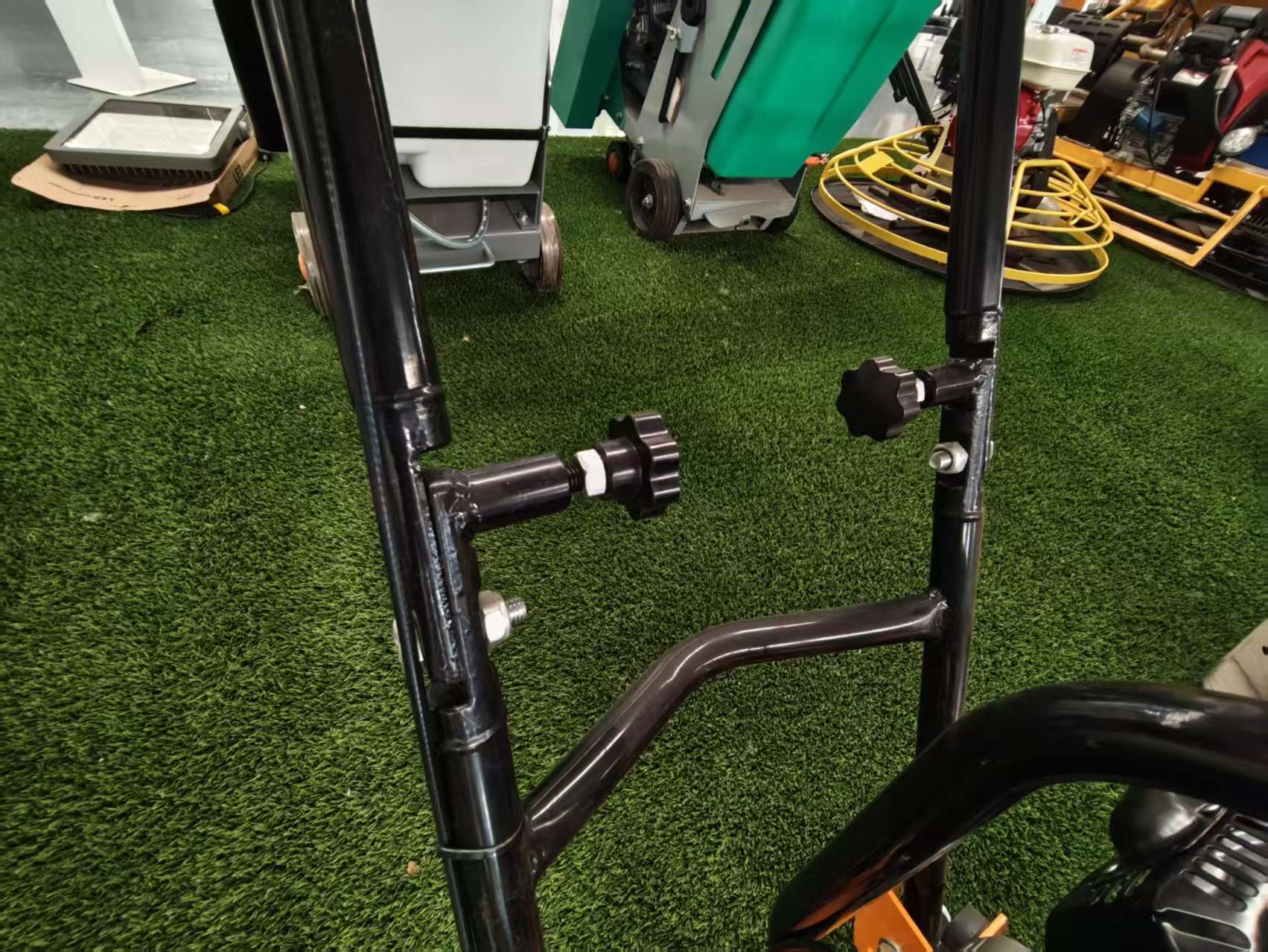

Armrest lift valve
-

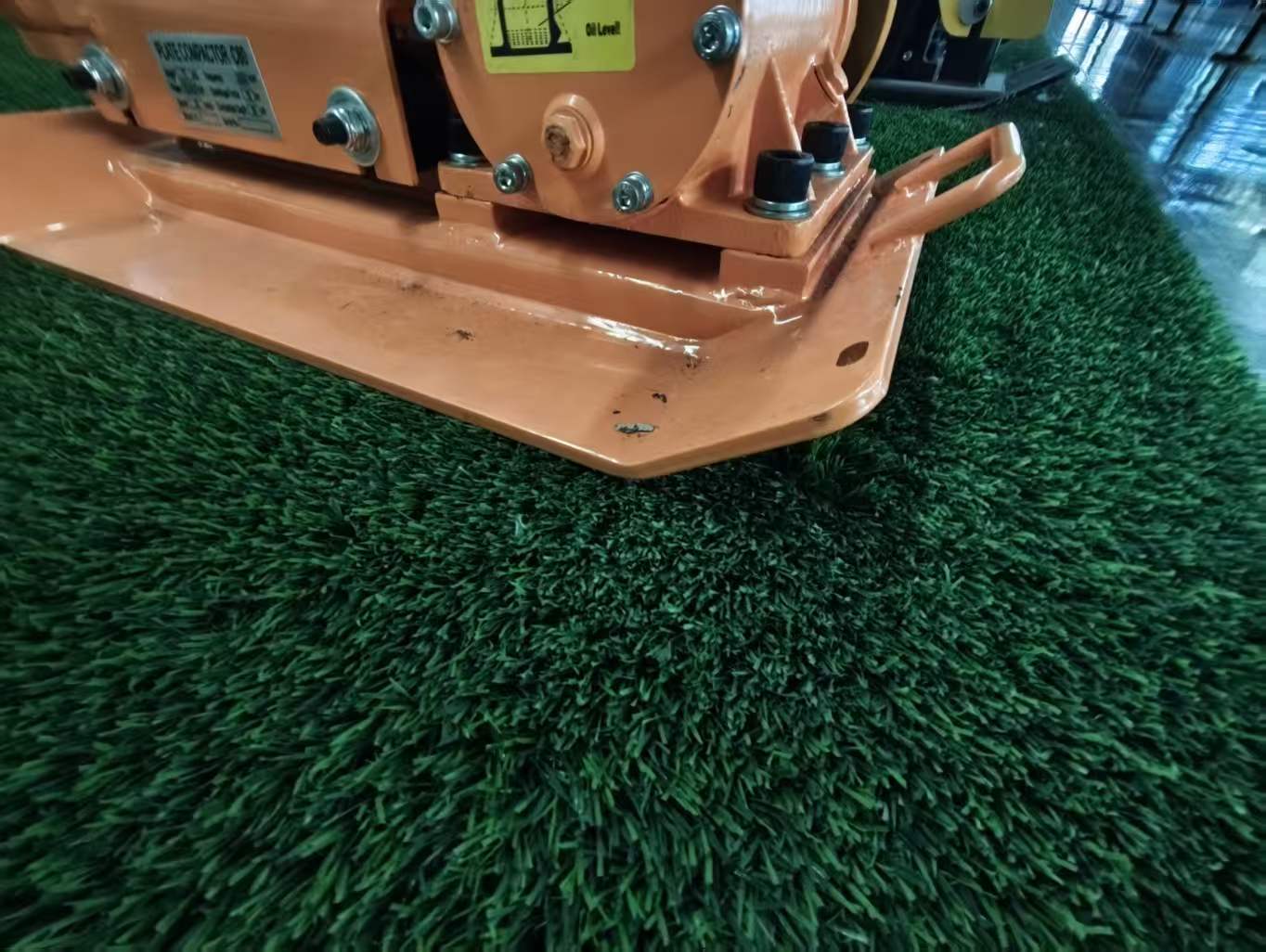

plate -

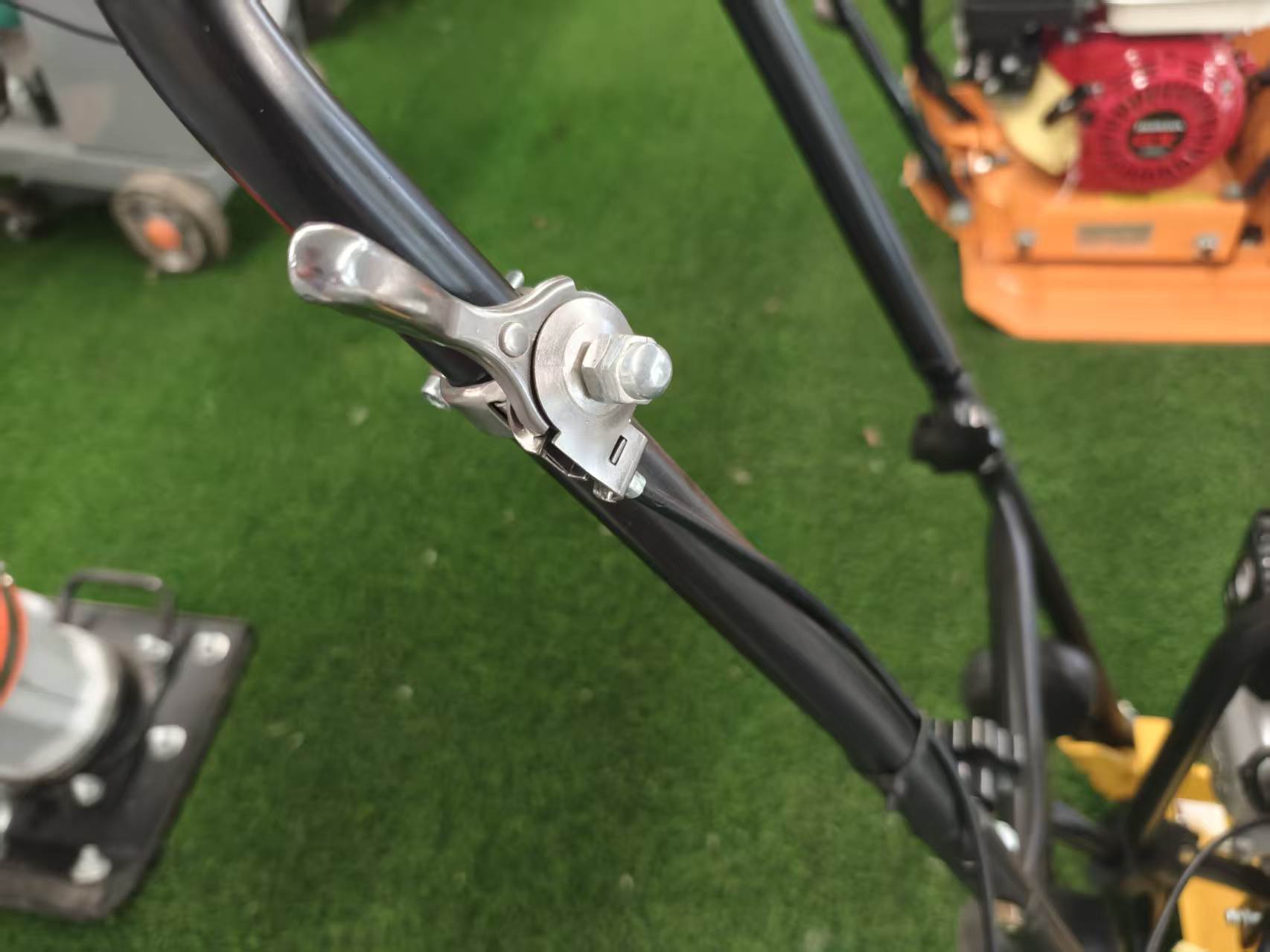

brake
1. Power System
The SDBM BMP90 Plate Compactor is equipped with the reliable HONDA GX160 gasoline engine, delivering 5.5 HP power output. It adopts a single-cylinder air-cooled four-stroke design, eliminating the need for an additional water cooling system. This simplified structure reduces maintenance requirements while ensuring excellent adaptability to harsh working conditions such as high temperatures and dry environments, extending the engine's service life.
The engine operates at a stable speed of 5500 rpm, generating a powerful 13 kN exciting force. Combined with the 5.5 HP power system, the BMP90 achieves efficient compaction performance with a maximum compaction depth of 30 cm, ensuring excellent surface density and meeting professional engineering requirements.
During operation, the BMP90 provides smooth running performance, stable vibration, and flexible control. Operators can easily adjust the moving direction according to different jobsite conditions, making it suitable for narrow areas and irregular working surfaces. The optimized vibration system helps reduce operator fatigue while improving safety and operating comfort.
2. Drive & Control System
The SDBM BMP90 Plate Compactor features a travel speed of 40 cm/s and combines it with a powerful 13 kN exciting force to achieve an impressive working efficiency of up to 660 m²/hour. This high productivity helps shorten construction time, reduce labor costs, and improve overall project efficiency.
The intuitive control system is designed for simple and convenient operation. Operators can quickly master machine operation without requiring professional training, reducing the learning curve and improving working efficiency on different construction sites.
3. Compact Structure & Dimensions
The SDBM BMP90 Plate Compactor adopts a compact structural design that provides an excellent balance between wide working coverage and jobsite adaptability.
With an operating weight of 83 kg, a plate size of 53 × 50 cm, and an overall working size of 110 × 50 × 85 cm, the BMP90 offers strong compaction capability while maintaining excellent mobility. Its compact body allows easy movement through narrow construction areas without requiring large-scale site adjustments, making it suitable for various complex operating environments.
Competitive Advantage
Why Choose the SDBM BMP90 Plate Compactor?
The SDBM BMP90 Plate Compactor is designed for customers who require higher compaction performance, reliable operation, and long-term durability in demanding construction environments.
1. Powerful HONDA Engine Performance
The BMP90 is equipped with the famous HONDA GX160 engine, featuring a 5.5 HP output and a single-cylinder air-cooled four-stroke design. It provides reliable starting performance, stable power delivery, and excellent durability for continuous operation.
2. Strong Vibration & Compaction Performance
With a rotational speed of 5500 rpm and an exciting force of 13 kN, the BMP90 generates powerful vibration energy to effectively compact soil, sand, gravel, and asphalt materials.
The machine can achieve a compaction depth of up to 30 cm, improving construction quality and reducing the number of repeated passes.
3. High Working Efficiency
The BMP90 features a travel speed of 40 cm/s and a working efficiency of up to 660 m²/hour, allowing operators to complete larger compaction areas faster and improve overall productivity.
4. Optimized Compact Design
With a working size of 110 × 50 × 85 cm, the BMP90 maintains a compact structure while providing a larger compaction plate area.
The 53 × 50 cm plate size increases coverage per pass, reducing repeated operation and improving efficiency.
5. Durable Construction & Easy Maintenance
Built with high-quality components and a reinforced base plate, the BMP90 is designed to withstand harsh jobsite conditions. Its simple structure ensures convenient maintenance and reduces long-term operating costs.
Applications
The SDBM BMP60 Plate Compactor is widely used for:
Road and pavement repair
Asphalt patching
Sidewalk construction
Driveway compaction
Landscaping projects
Foundation preparation
Small construction projects
Municipal engineering
Production Process
Packing and shipping
Packaging and Transportation
SDBM can provide suitable packaging and transportation solutions according to the machine configuration, order quantity, destination and customer requirements.
Export Packaging
Export wooden case packaging;
Protective film applied around the machine;
Protection against dust, scratches and surface contamination;
Proper securing of the engine, machine body and operating handle;
Inspection of documents and accessories before packing;
Loading arrangements for bulk orders according to available container space.
Transportation Options
Sea transportation;
Land transportation;
Air transportation;
Delivery to the customer’s designated port;
Delivery to the customer’s freight forwarder;
Delivery to a specified location where transport conditions allow.
Company Profile
Shandong Benma Engineering Machinery Co., Ltd. is a leading player in the field of engineering machinery. Since our establishment, we have obtained ISO9001 quality system certification in 2002, underscoring our dedication to producing high-quality products. Our extensive product range includes road rollers, mobile lighting towers, hydraulic power units, compaction machinery, concrete machinery, and construction machinery.
At Shandong Benma Construction Machinery, we take pride in our advanced production equipment and our team of experienced technicians. Our products feature innovative designs, exceptional craftsmanship, robustness, and durability, which have garnered high acclaim from users worldwide. With a strong reputation, superior product quality, and attentive after-sales service, we have successfully attracted.
FAQ
1. What is the SDBM BMP90 Plate Compactor used for?
The BMP90 is designed for compacting various materials, including soil, gravel, sand, and asphalt. It is suitable for road construction, pavement repair, landscaping, and foundation preparation.
2. What engine does the BMP90 use?
The BMP90 is equipped with the HONDA GX160 gasoline engine, providing reliable power, low fuel consumption, and excellent durability.
3. How deep can the BMP90 compact?
The BMP90 can achieve a maximum compaction depth of approximately 30 cm, depending on material conditions and construction requirements.
4. What is the working efficiency of the BMP90?
The BMP90 can reach a working efficiency of approximately 660 m²/hour, helping contractors complete compaction tasks quickly and efficiently.
5. Is the BMP90 easy to transport?
Yes. Although it provides stronger compaction performance, the BMP90 has a compact design with an operating weight of 83 kg, making it convenient for transportation between job sites.
6. Why choose SDBM BMP90 instead of ordinary plate compactors?
The BMP90 offers:
Reliable HONDA engine performance
Strong 13 kN vibration force
30 cm compaction depth
High working efficiency
Compact and durable structure
Easy maintenance
Competitive factory pricing
7. Can SDBM provide OEM customization?
Yes. SDBM supports OEM and customized solutions, including:
Machine color
Customer logo
Product configuration
Packaging requirements
8. Why choose SDBM construction machinery?
SDBM provides:
Professional manufacturing experience
Strict quality control
CE certified products
OEM & ODM customization
Competitive factory pricing
Global export support
