Overview
Place of Origin: |
China |
Brand Name: |
SDBM |
Model Number: |
4TNVH1600 |
Certification: |
CE |
Minimum Order Quantity: |
1 |
Packaging Details: |
Wooden box packaging |

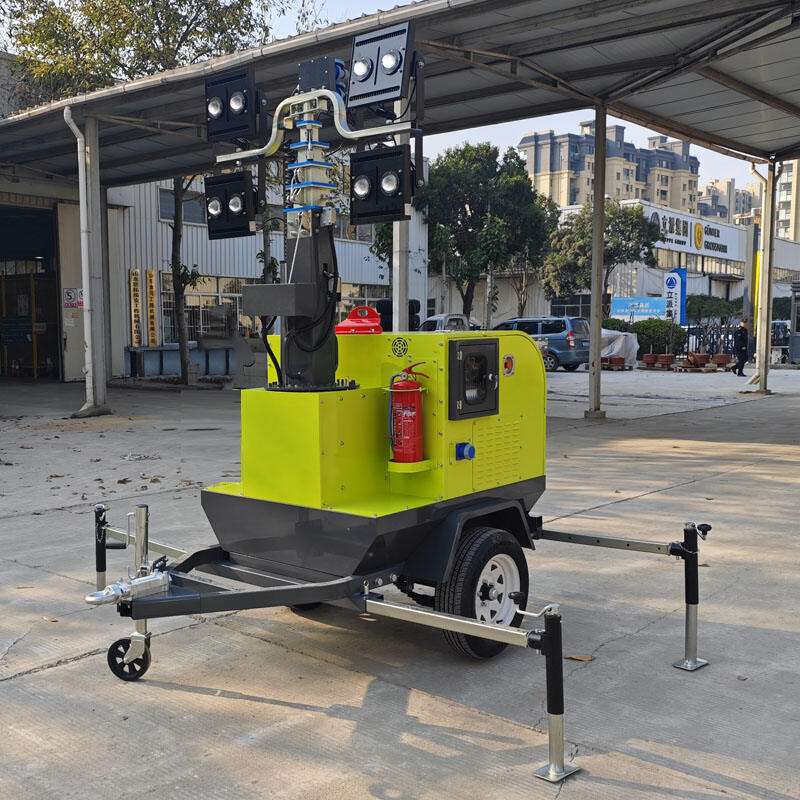

Description
-

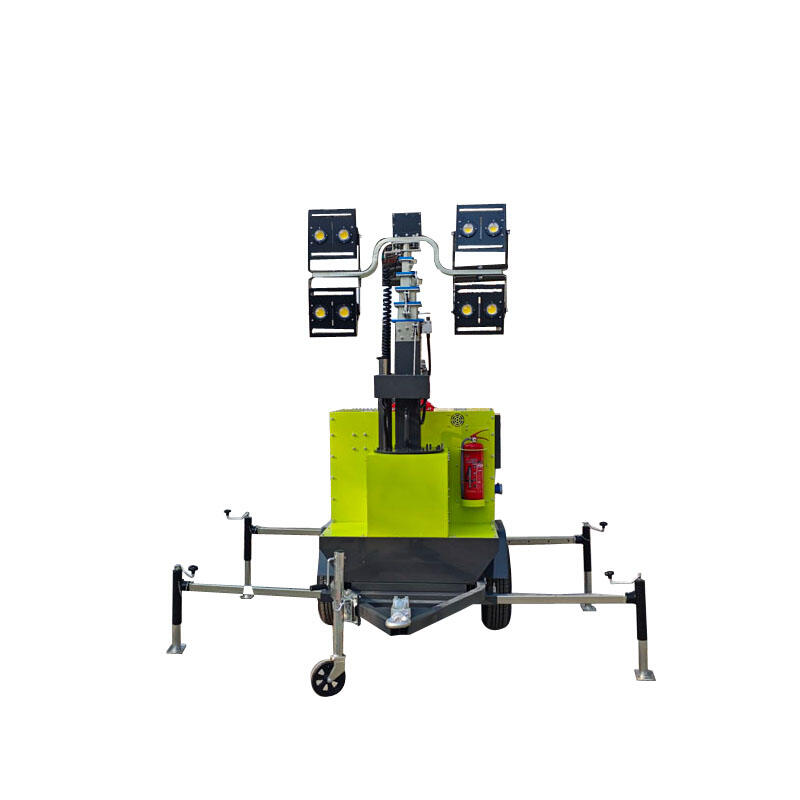

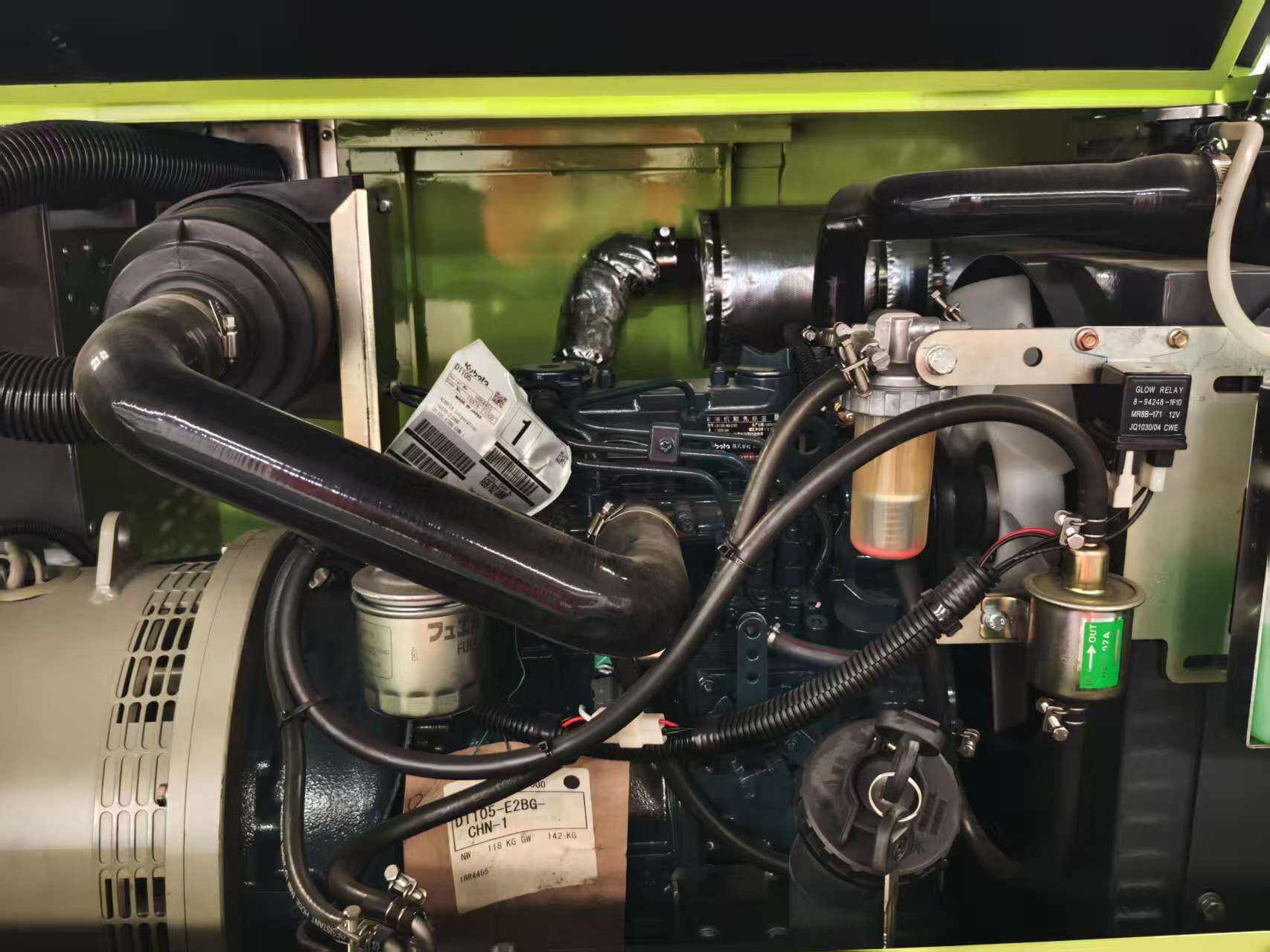

Generator set
-

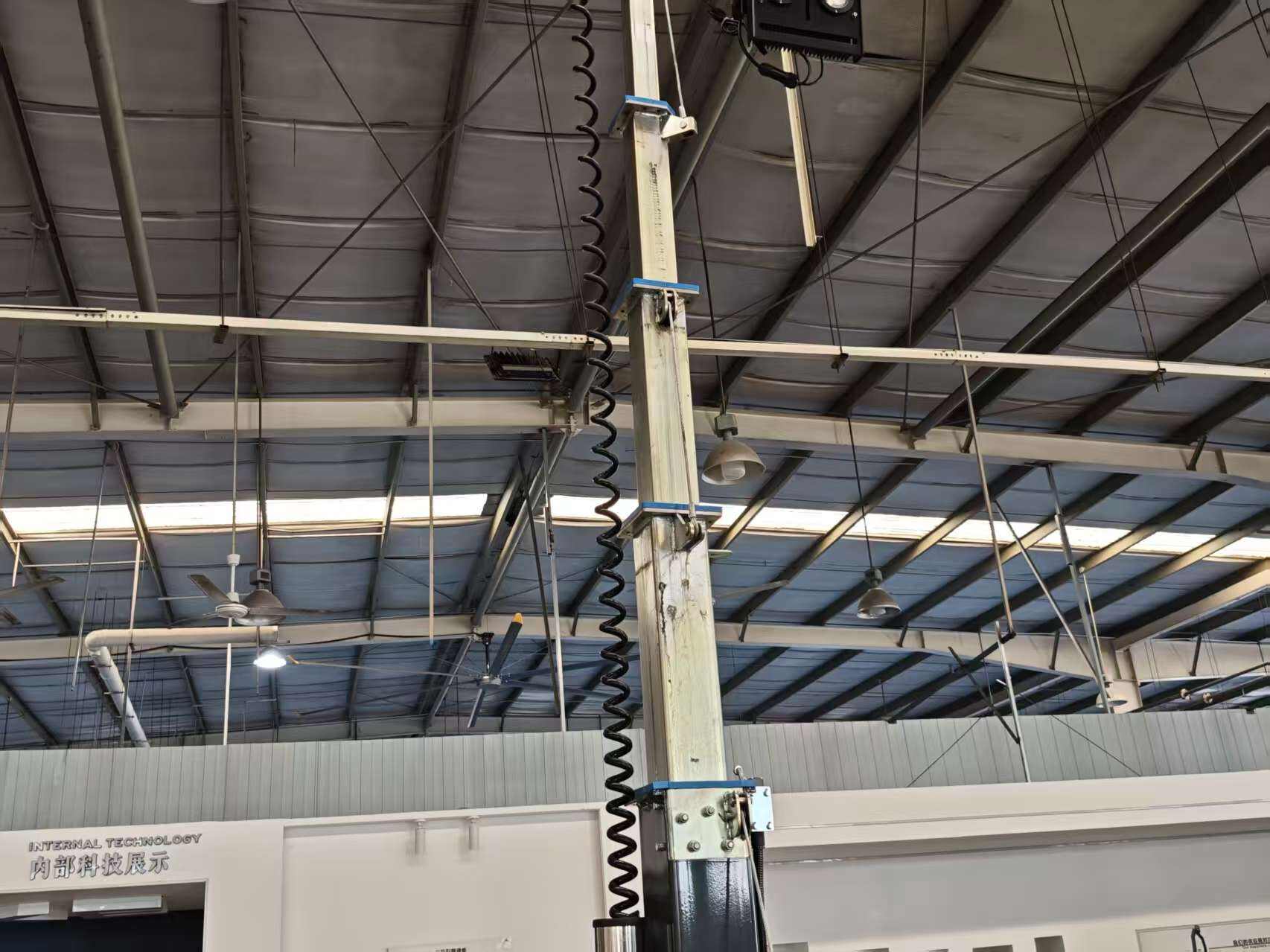

Mast
-

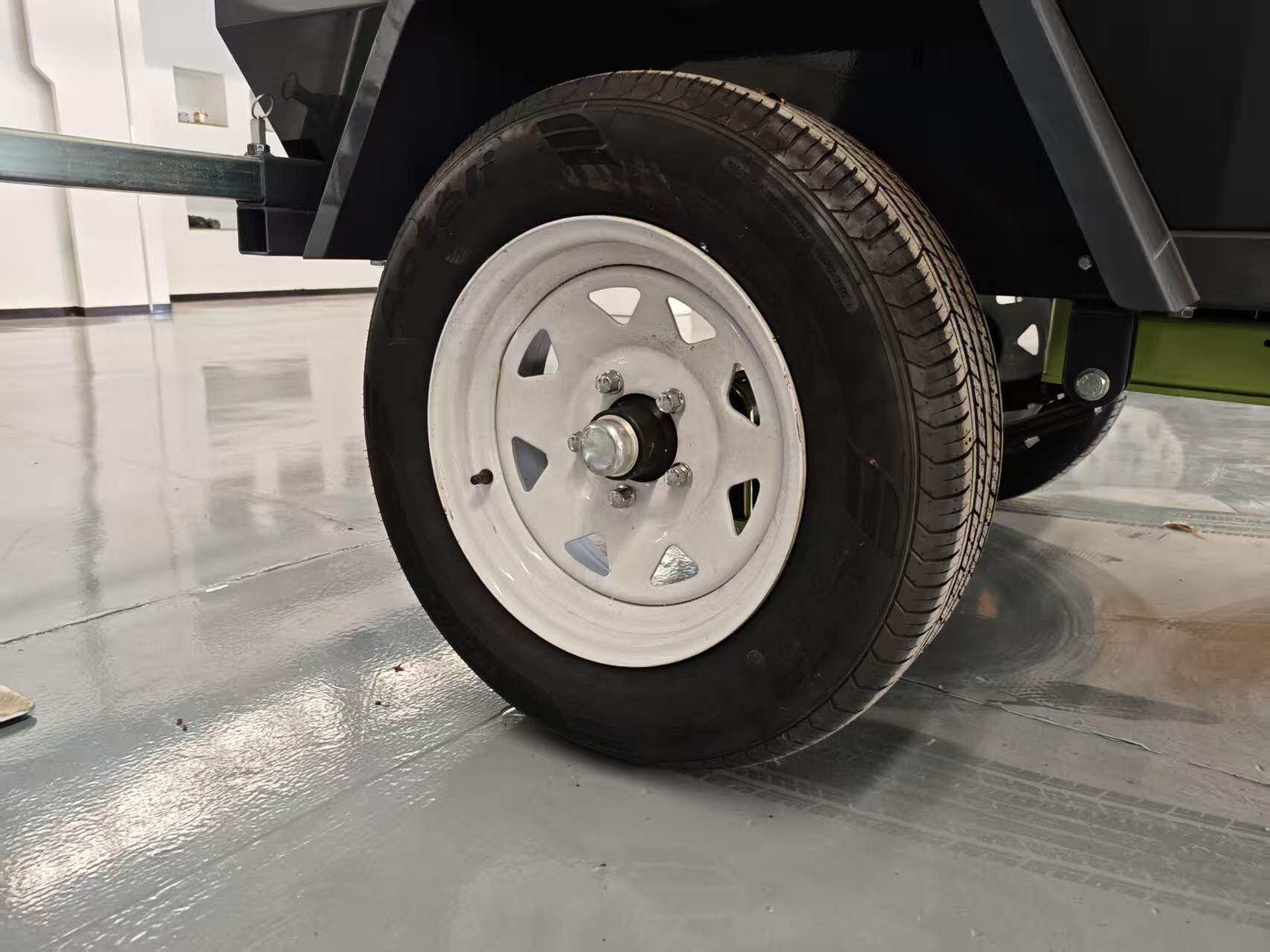

Tire
-

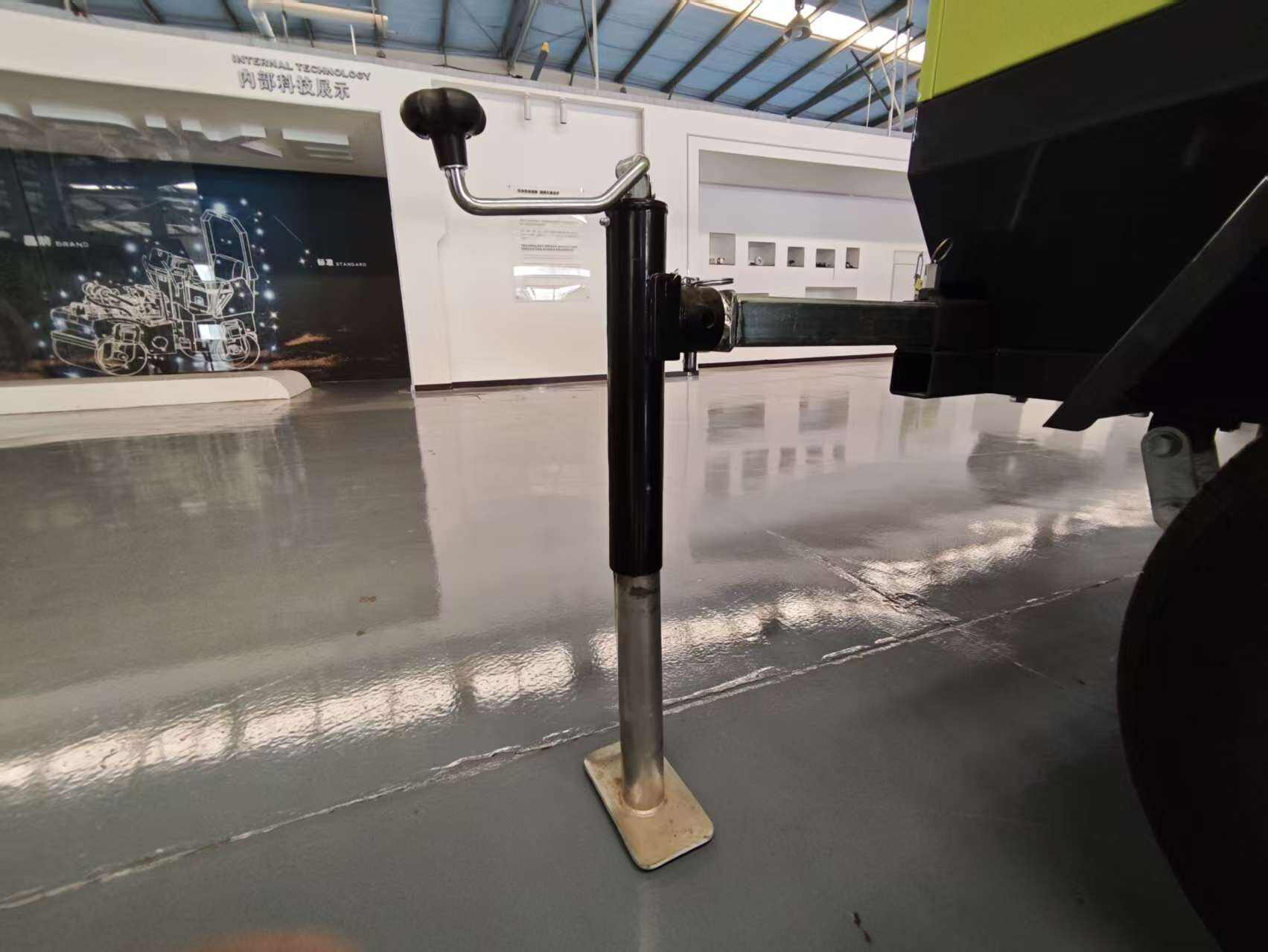

Outriggers
-

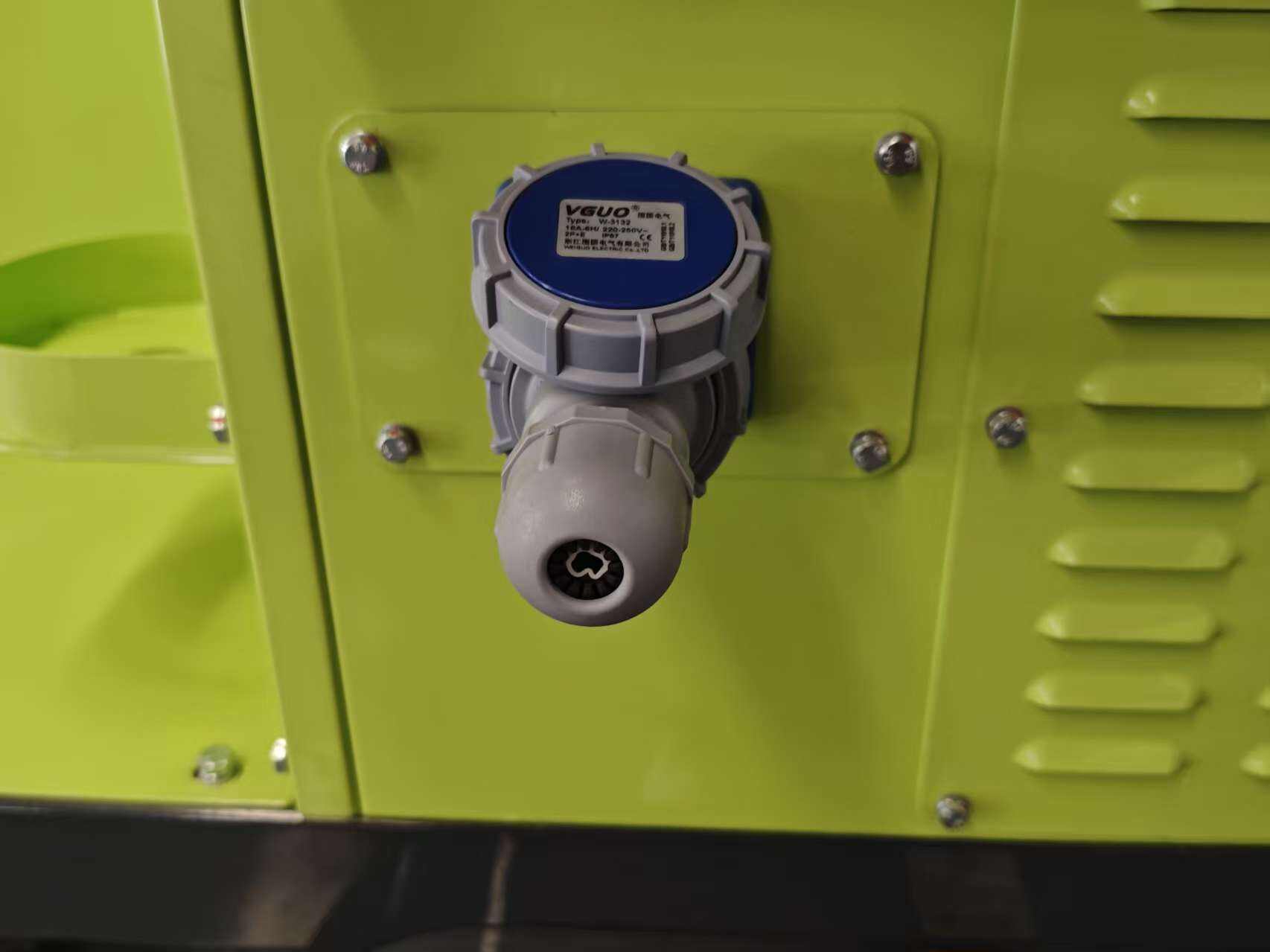

Power output port
-

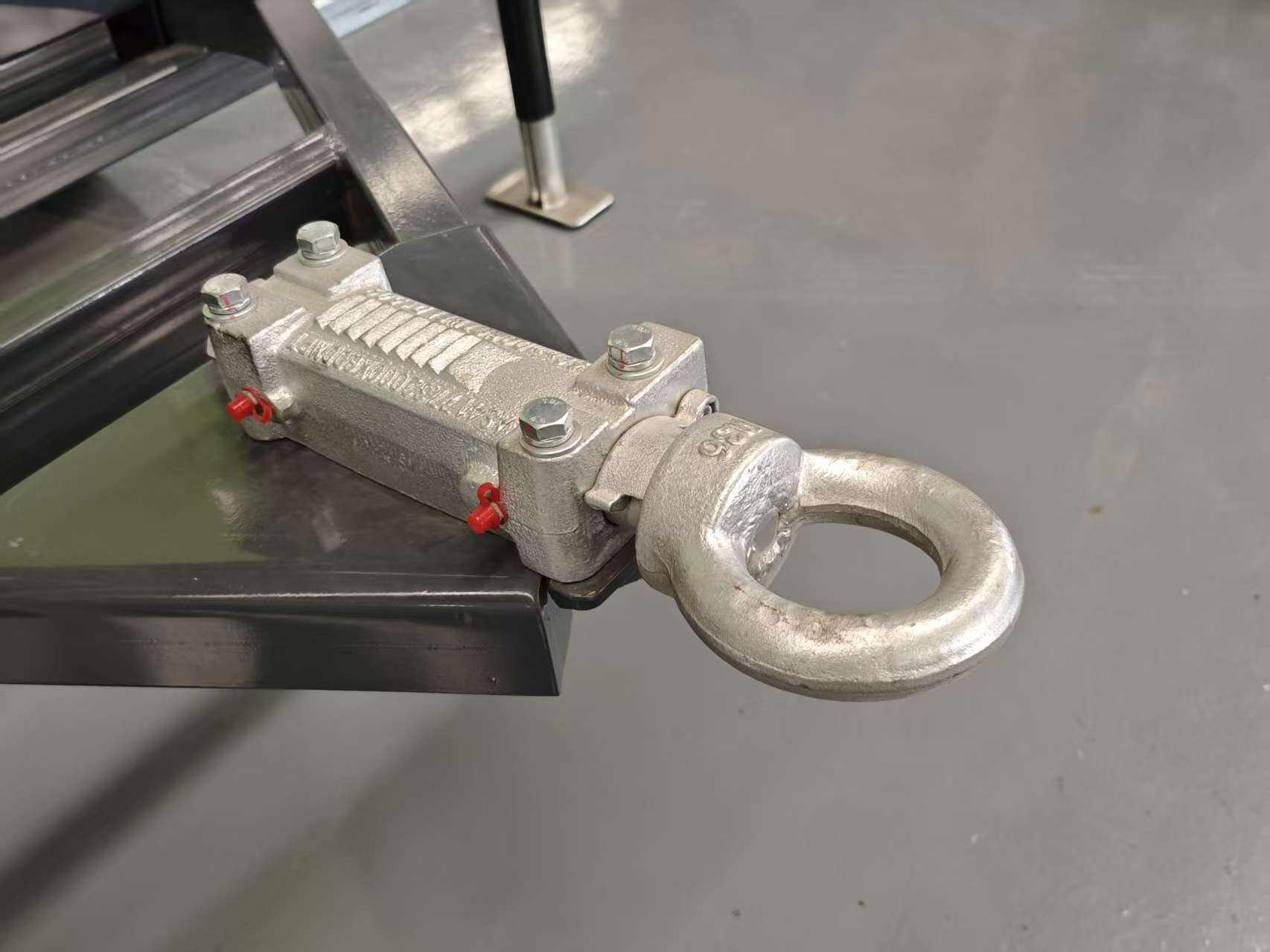

Trailer connection point
-

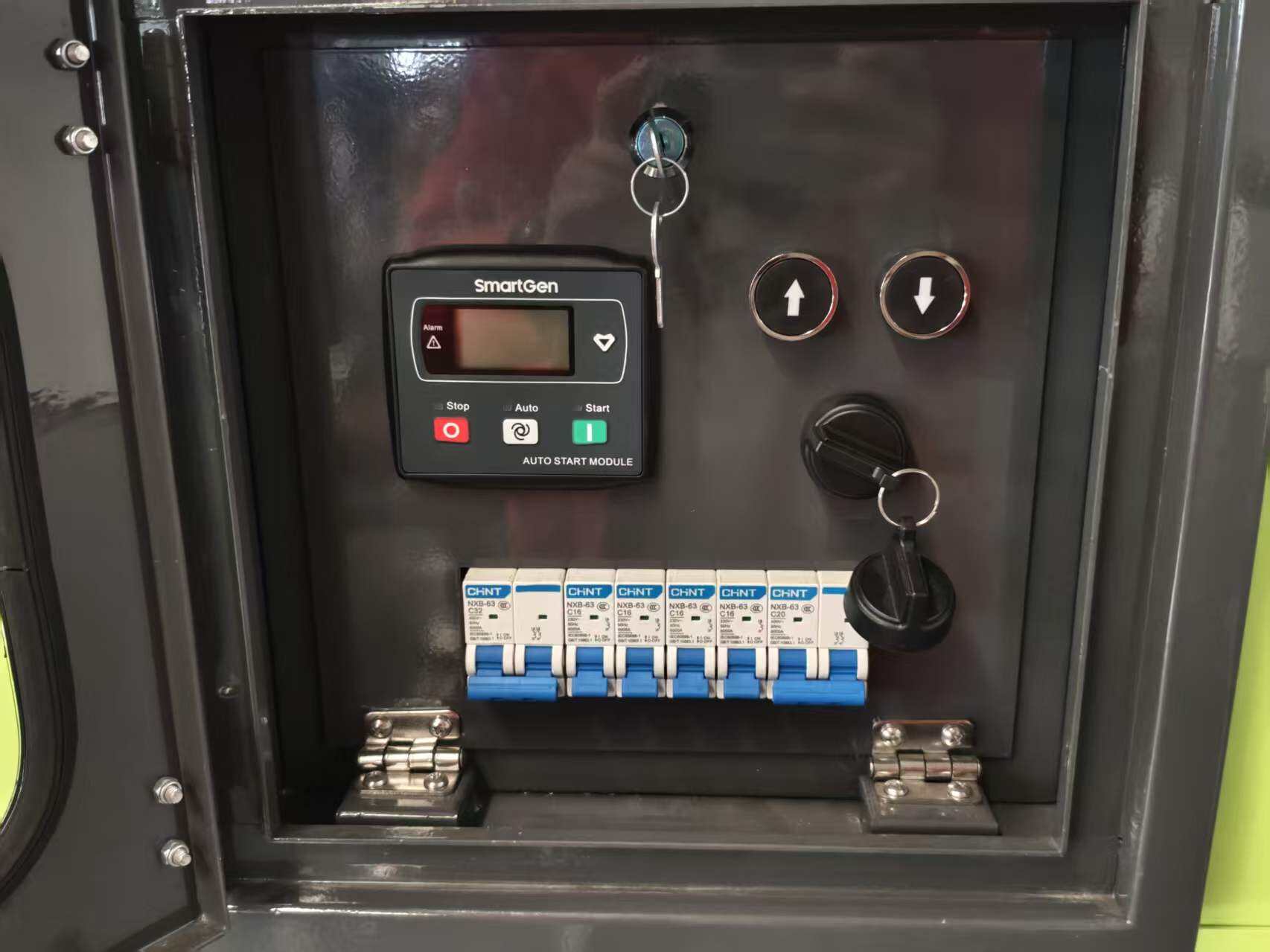

Dashboard
-

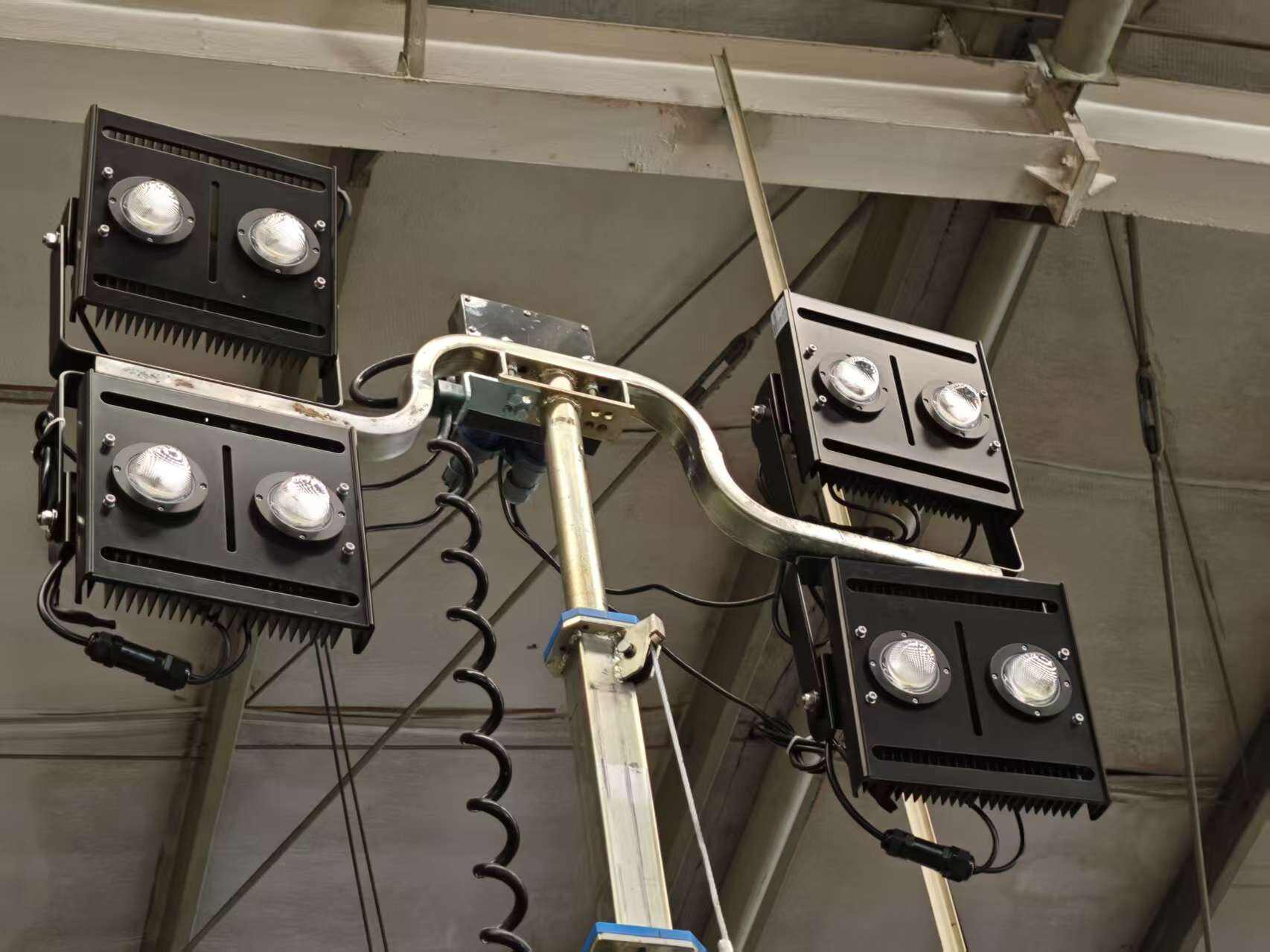

LED

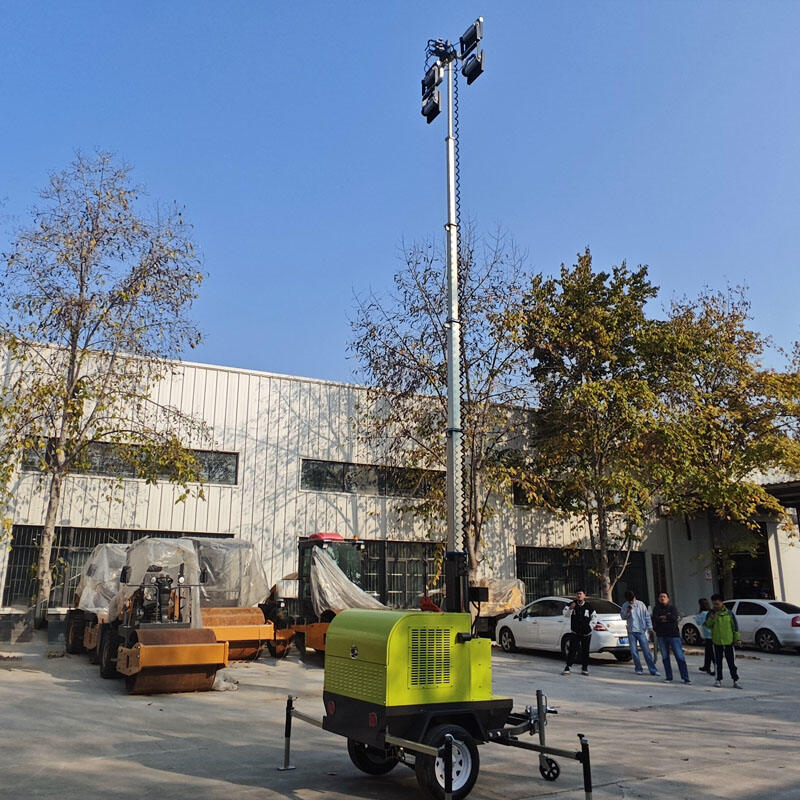

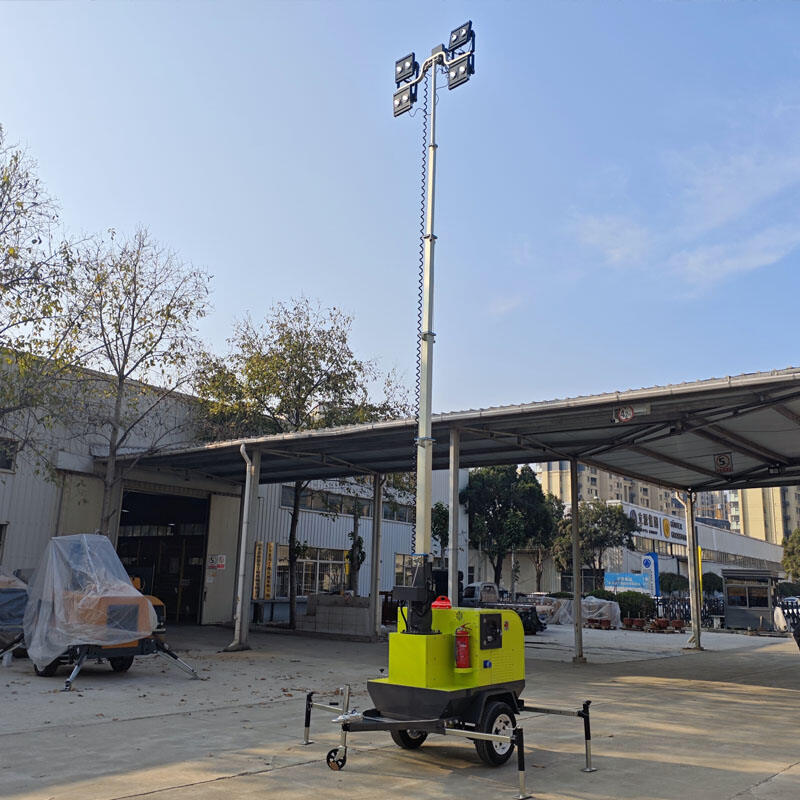

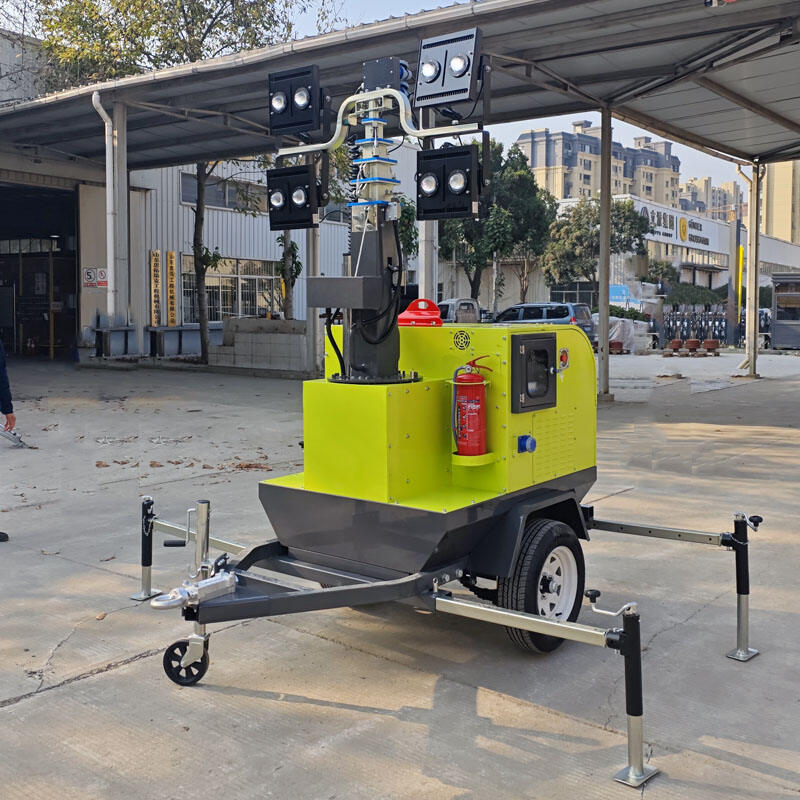

1.9-Meter Electric Lifting Mast
Equipped with a high-strength electric lifting mast reaching 9 meters, providing wide-area illumination for large construction sites.
2.High-Power Lighting System
Fitted with 4 × 1000W high-efficiency lamps, delivering powerful brightness for night operations.
3.360° Adjustable Lamp Heads
The lighting system supports 360° rotation, allowing flexible adjustment to illuminate multiple directions.
4.Reliable Power System
Powered by a durable engine and generator system to ensure stable and continuous lighting performance.
5.Heavy-Duty Trailer Design
Robust trailer structure enables easy transportation and quick deployment between different job sites.
6.Stable Outrigger Support
Four adjustable stabilizers provide excellent balance and safety, even on uneven ground.
7.Easy Operation
User-friendly electric control system allows fast mast lifting and lowering, improving working efficiency.
8.Wide Range of Applications
Suitable for road construction, mining sites, emergency rescue, outdoor events, and large-scale night work.
Applications
Specifications
|
Technical parameter |
|
|
|
Model |
4TNVH1600 |
|
|
Total length |
2450mm |
|
|
Total width |
1350mm |
|
|
Total height |
2650mm |
|
|
Total weight |
860kg |
|
|
Fully extended height |
9m |
|
|
Engine type |
Kubota Z482 |
Kubota D1105 |
|
Speed |
1800rpm |
|
|
Number of cylinders |
2 |
3 |
|
Engine characteristics |
Water-cooled four-stroke |
|
|
Combustion method |
/ |
|
|
Air intake method |
Natural air intake |
|
|
Emission level |
Conventional |
|
|
Frequency |
60Hz |
|
|
Rated voltage |
240V |
|
|
Motor insulation class |
Class H |
|
|
Motor protection grade |
IP65 |
|
|
Light model |
LED |
|
|
Luminous flux |
90000 LM per lamp |
|
|
Number of lights & power |
4 × 400W |
|
|
Light pole sections |
6 |
|
|
Light pole lifting |
Electric |
|
|
Light pole rotation |
Maximum manual rotation 359°, self-locking |
|
|
Irradiation angle adjustment |
Manual |
|
|
Suspension & Braking |
Leaf spring suspension & single axle without brakes |
|
|
Tow bar |
Traction bar with adjustable guide wheels |
|
|
Support Legs & Quantity |
4 manual support legs with retractable support rods |
|
|
Tire size |
14 inch regular |
|
|
Traction head |
2 inch or 50 mm ball puller |
|
|
Taillight |
Tail reflector |
|
|
Maximum traction speed |
80 km/h (62 mph) |
|
|
Fuel tank type |
Iron fuel tank |
|
|
Fuel tank capacity |
100 L |
|
|
Continuous working time |
60 hours |
|
|
Wiring harness and electrical components |
Conventional |
|
|
Maximum wind speed when fully extended |
20 m/s (45 mph) |
|
|
Noise Level |
72 dB(A) at 7 m |
|
Competitive Advantage
Why Choose the SDBM 4TNVH1600-9 electric Lifting Lighting Tower?
The SDBM 4TNVH1600-9 electric lifting lighting tower delivers powerful, reliable illumination with a simple manual lift design that’s easy to operate and maintain. Its 9-meter mast provides excellent coverage for night-time operations, construction sites, events, and emergency works. Built with a stable base and adjustable light fixtures, it ensures broad, consistent lighting where you need it most. Compact, durable, and efficient, it’s an ideal choice for projects requiring dependable and cost-effective site lighting.

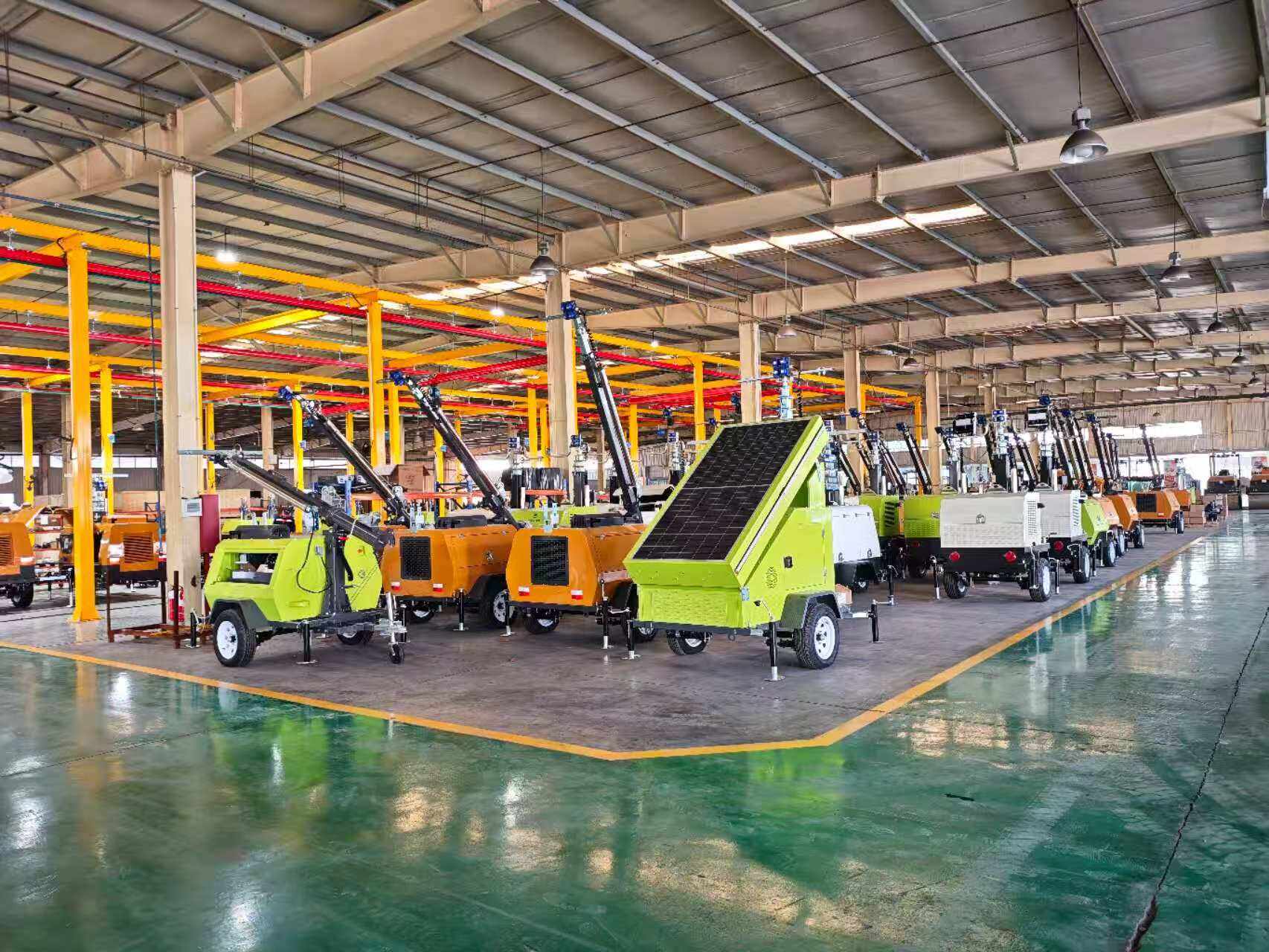

Behind the 4TNVH1600 lies SDBM's manufacturing advantage – over 15 years of manufacturing experience, ISO-certified production processes, and comprehensive in-house manufacturing capabilities, ensuring consistent product quality. Each unit undergoes rigorous testing, and with stable engine partnerships, fast delivery, OEM/ODM customization services, and global after-sales support, SDBM guarantees you a durable, efficient machine suitable for professional use.
Choose the4TNVH1600 and you'll get a high-quality machine manufactured by a trusted factory – world-class reliability.
FAQ
1. What is the purpose of the 4TNVH1600-9 lighting tower?
The 4TNVH1600-9 electric lifting lighting tower is designed to provide powerful and reliable lighting for construction sites, road maintenance, municipal engineering, mining operations, emergency rescue, and other nighttime outdoor work.
2. What type of lifting system does it use?
The 4TNVH1600-9 uses a electric lifting mast, allowing for easy raising and lowering without the need for hydraulic or electric systems. This ensures simple operation, low maintenance costs, and high reliability.
3. What is the maximum mast height?
The mast can be manually raised to a maximum working height of 9 meters, providing wide lighting coverage for large work areas.
4. What type of lamps are used?
It is equipped with high-efficiency LED lamps or metal halide lamps, featuring high brightness, low energy consumption, long lifespan, and stable lighting performance.
5. What is the total lighting power?
The total lighting power is 4 × 1000 W (4000 W), providing high-intensity illumination suitable for demanding outdoor environments.
6. Are the lamps adjustable?
Yes. Each lamp head can be independently rotated and adjusted to precisely direct light to the desired location, improving visibility and work efficiency on site.
7. What power options are available?
The 4TNVH1600-9 can be powered by a diesel generator or connected to an external power source, making it suitable for both remote areas and urban applications.
8. Is the lighting tower easy to transport?
Yes. The compact design and stable structure make the lighting tower easy to transport, position, and deploy to different work sites.
9. Is it suitable for outdoor use?
Absolutely. The 4TNVH1600-9 is constructed with durable materials and weather-resistant components, ensuring reliable operation even in harsh outdoor conditions.
10. What safety features does it include?
The lighting tower includes a stable base, a secure mast locking mechanism, and a robust structural design to ensure safe operation during lifting and use.
11. What maintenance is required?
Due to the manual lifting system, maintenance is minimal. Regular checks include lamp inspection, mast lubrication, fastener tightening, and (if equipped) generator maintenance. 12. Can the4TNVH1600-9 model product be customized?
Yes. SDBM offers the following customization options:
Lighting type and power
Generator brand and configuration
Trailer-mounted or skid-mounted base
Color and logo customization
