BM155-Small Asphalt Paver Machine

1. Power System

The SDBM BMM155 Mini Asphalt Paver is equipped with reliable engine options including the KOHLER KD1100F diesel engine and KUBOTA D722 diesel engine, providing powerful and stable power output for professional paving operations. Both engines are designed for durability, excellent fuel efficiency, and reliable performance under continuous working conditions.

With an output power of 9.5 kW (KOHLER) or 10.2 kW (KUBOTA), the BMM155 delivers sufficient power support for asphalt paving, material conveying, and hydraulic system operation. The optimized power system ensures smooth machine performance while maintaining high efficiency during long working periods.

The advanced engine and hydraulic power system provide stable energy transmission for the travel motor, scraper system, and steering system. This ensures precise operation, reliable paving performance, and excellent adaptability to different construction environments.

2. Drive & Control System

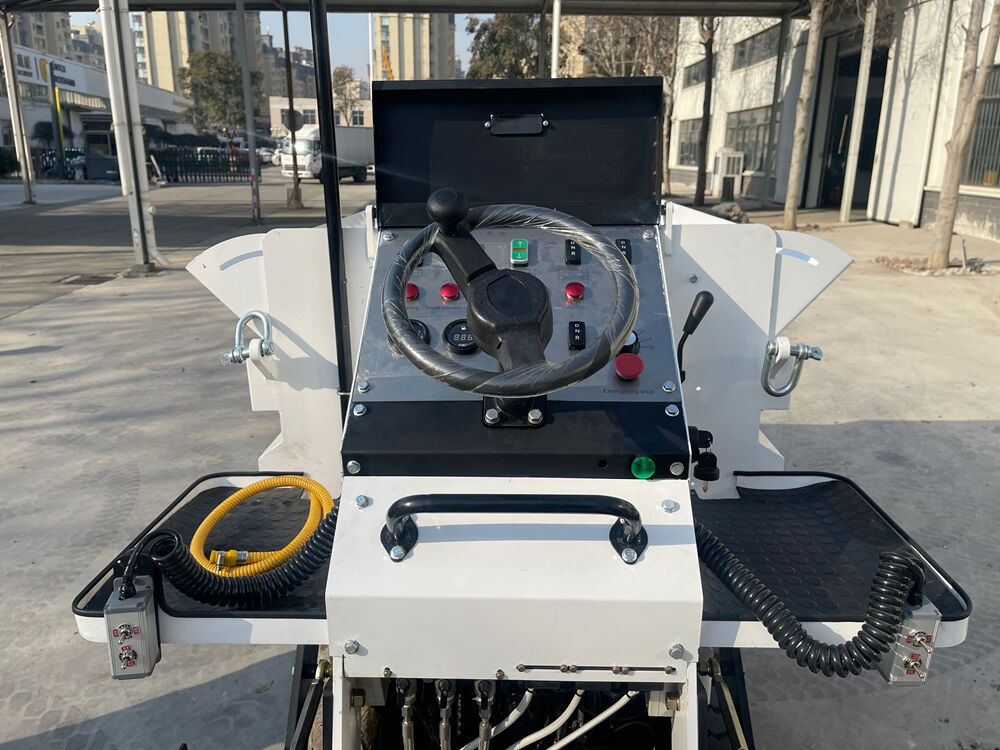

The SDBM BMM155 Mini Asphalt Paver adopts a fully hydraulic drive and control system, providing smooth operation, precise control, and excellent maneuverability during paving operations.

The machine is equipped with hydraulic steering, allowing operators to easily control the traveling direction with a minimum inside turning radius of only 1140 mm. The stable hydraulic system improves operational flexibility, especially when working in narrow construction areas.

With a transmission speed range of 0–3.4 km/h and a maximum paving speed of 25 m/min, the BMM155 provides efficient and controllable paving performance. The hydraulic system uses high-quality components, including:

Likechuan 02 single-speed travel motor

Dali BRM-315 scraper motor

ZHENGTAI hydraulic control solenoid valve

Dalib ZZS-E80 steering gear

The hydraulic system operates with a rated pressure of 17 MPa and a maximum pressure of 26 MPa, ensuring stable power transmission and reliable performance during continuous paving work.

With a maximum paving capacity of 35 tons/hour, the BMM155 significantly improves construction efficiency while reducing manual labor requirements.

3. Paving Performance & Dimensions

The SDBM BMM155 Mini Asphalt Paver adopts a compact and efficient design, combining professional paving performance with excellent site adaptability. Its operating weight is 1450 kg, with a maximum working weight of 1520 kg, providing excellent stability during paving operations.

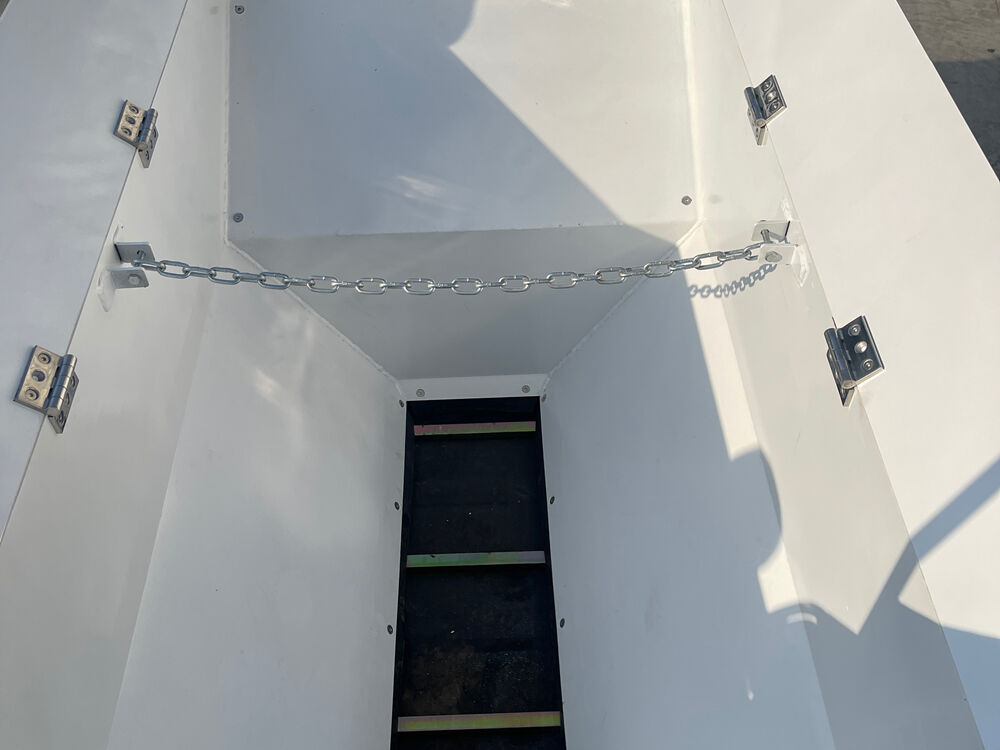

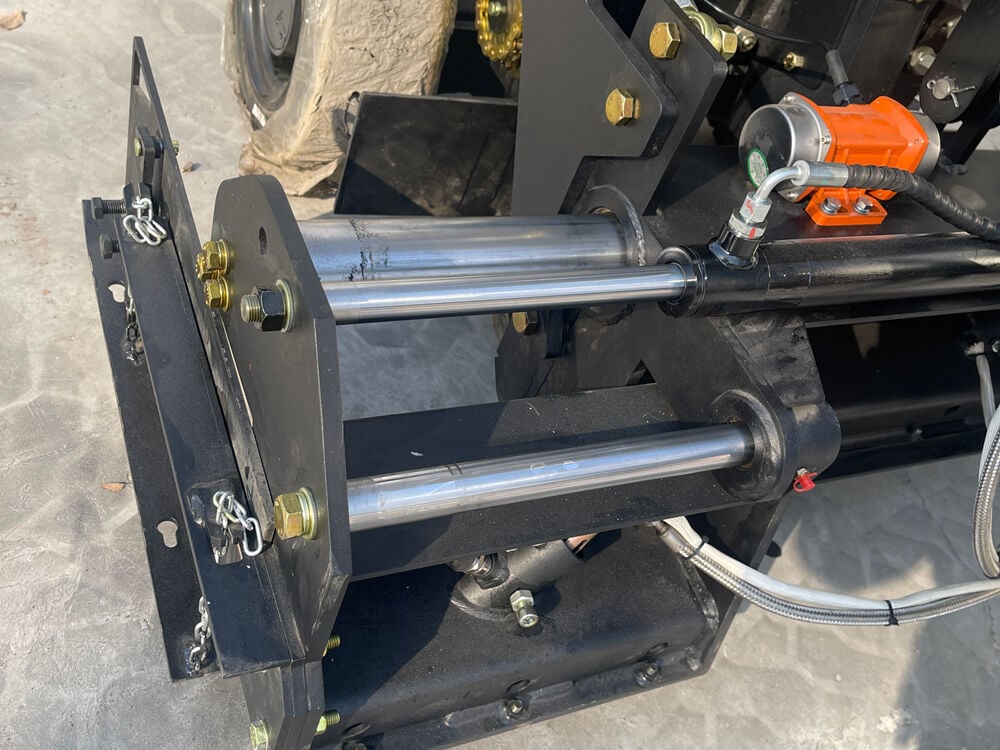

The machine features a 0.7 m³ hopper capacity, allowing continuous material supply and improving paving efficiency. The adjustable paving width ranges from 300 mm to 1450 mm, with a standard paving width of 900–1450 mm, making it suitable for different road construction requirements.

The ironing board supports a paving thickness range of 5–100 mm, allowing flexible adjustment according to project requirements. The standard heat ironing board improves asphalt surface quality and helps achieve smoother paving results.

The compact dimensions of the BMM155:

Machine length: 3015 mm

Machine width: 1220 mm

Machine height: 1495 mm

make it easy to transport and operate in limited construction spaces.

The machine is equipped with durable wheel configurations:

Rear wheel size: 400 × 127 mm

Direction wheel size: 370 × 100 mm

providing stable traction and smooth movement during operation.

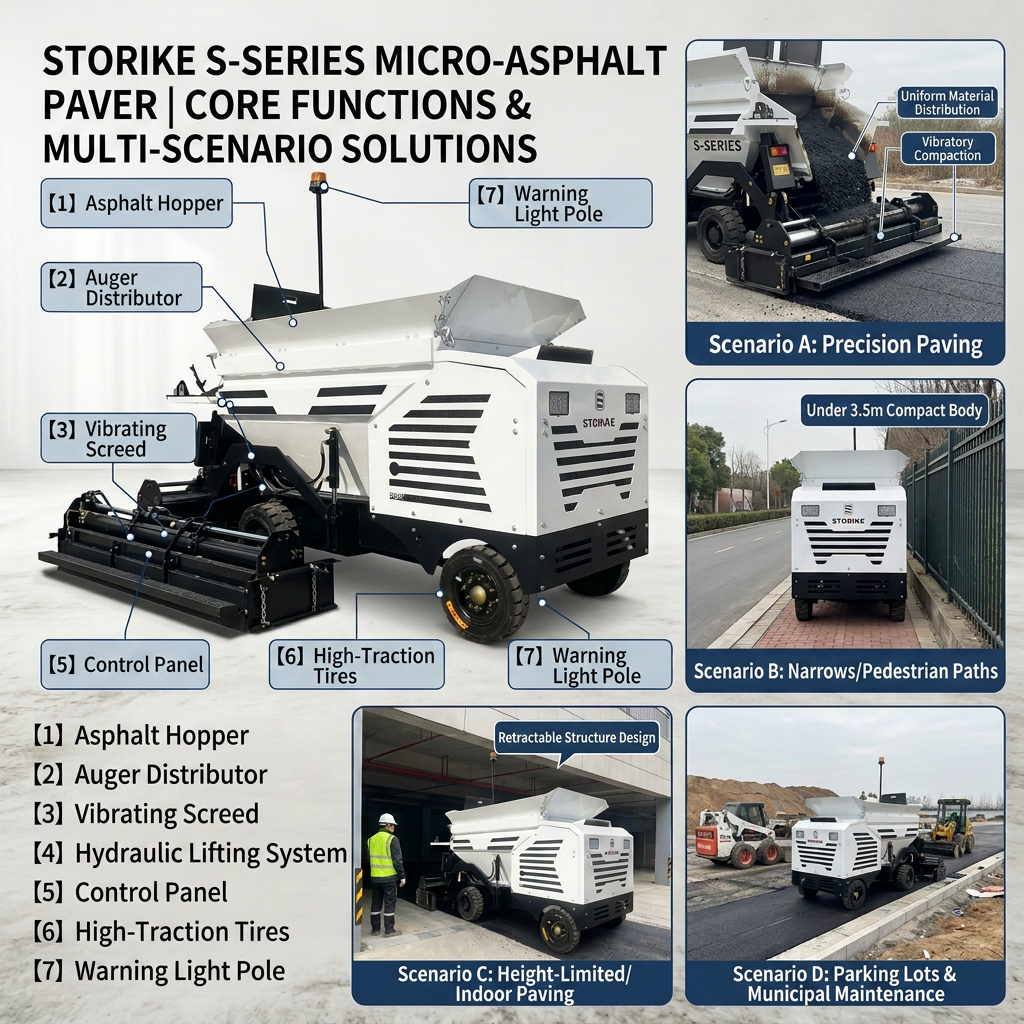

4. Application Areas

The SDBM BMM155 Mini Asphalt Paver is designed for professional small and medium-scale paving projects, including:

Municipal road construction

Rural road paving

Parking lot construction

Sidewalk paving

Road repair projects

Bicycle lane construction

Asphalt maintenance projects

Narrow-area paving operations

Its compact structure, hydraulic control system, and adjustable paving width make the BMM155 an ideal solution for contractors requiring high-quality paving performance in areas where large asphalt pavers cannot operate.

Why Choose the SDBM BMM155 Plate Compactor?

The SDBM BMM155 Mini Asphalt Paver is designed for contractors and construction professionals who need efficient paving performance, compact operation, and reliable hydraulic control. With its powerful engine options, flexible paving capability, and durable structure, the BMM155 provides a professional solution for small and medium-scale asphalt paving projects.

1. Powerful & Reliable Engine Options

The BMM155 offers two reliable engine configurations:

KOHLER KD1100F diesel engine

KUBOTA D722 diesel engine

With power outputs of 9.5 kW and 10.2 kW, the engine system provides stable power for the travel system, hydraulic system, scraper operation, and paving process.

The efficient diesel power system ensures excellent fuel economy, reliable operation, and long service life during continuous construction work.

2. High-Efficiency Asphalt Paving Performance

The SDBM BMM155 achieves a maximum paving capacity of 35 tons/hour, significantly improving construction efficiency compared with manual paving methods.

Its 0.7 m³ hopper capacity allows continuous asphalt feeding, reducing interruptions and improving overall project productivity.

3. Flexible Paving Width & Thickness Adjustment

The BMM155 supports adjustable paving widths from 300 mm to 1450 mm, making it suitable for different project requirements.

The paving thickness can be adjusted from 5 mm to 100 mm, allowing contractors to achieve precise paving results for various applications, including road repair, sidewalks, parking areas, and municipal projects.

4. Advanced Hydraulic Control System

The BMM155 adopts a fully hydraulic control system, providing:

Smooth machine operation

Precise steering control

Stable power transmission

Excellent maneuverability

The hydraulic steering system allows easy operation in narrow spaces, with an inside turning radius of only 1140 mm, making it ideal for complex construction environments.

5. Compact Design for Narrow Construction Areas

Compared with large asphalt pavers, the BMM155 features a compact structure with:

Machine length: 3015 mm

Machine width: 1220 mm

Machine height: 1495 mm

Its compact dimensions allow convenient transportation and flexible operation in areas where large equipment cannot access.

6. Durable Structure & Stable Operation

With an operating weight of 1450 kg and a maximum working weight of 1520 kg, the BMM155 provides excellent stability during paving operations.

The durable structure, reliable components, and optimized design ensure consistent performance in long-term construction projects.

7. Wide Range of Applications

The SDBM BMM155 Mini Asphalt Paver is suitable for:

Municipal road construction

Rural road paving

Asphalt repair projects

Parking lot paving

Sidewalk construction

Bicycle lane paving

Residential road projects

Narrow-area paving operations

8. Professional Paving Solution from SDBM

Choosing the SDBM BMM155 Mini Asphalt Paver means choosing:

Reliable diesel power

Efficient paving performance

Flexible paving adjustment

Hydraulic precision control

Compact and practical design

Lower labor costs

Professional construction quality

The SDBM BMM155 Mini Asphalt Paver is suitable for:

Municipal road construction

Rural road paving

Asphalt repair projects

Parking lot paving

Sidewalk construction

Bicycle lane paving

Residential road projects

Narrow-area paving operations

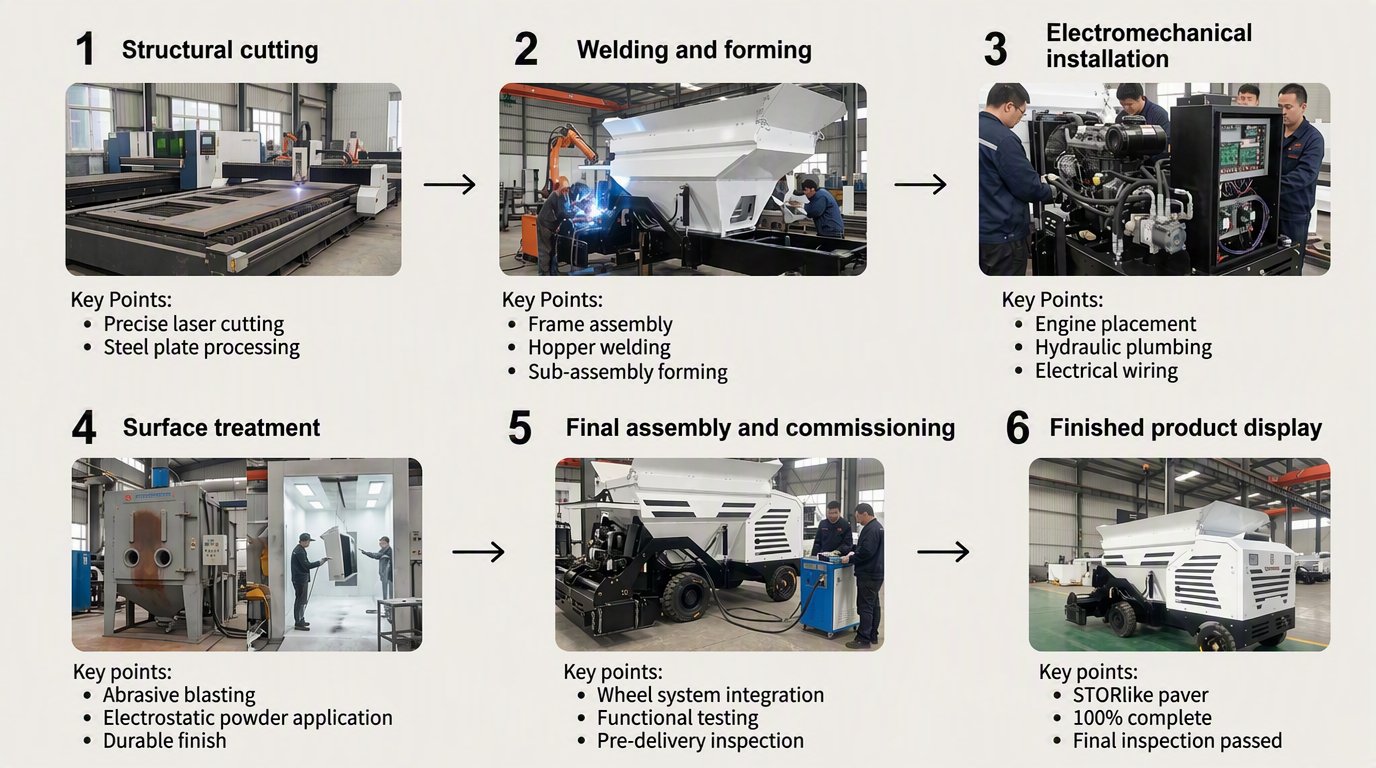

Production Process

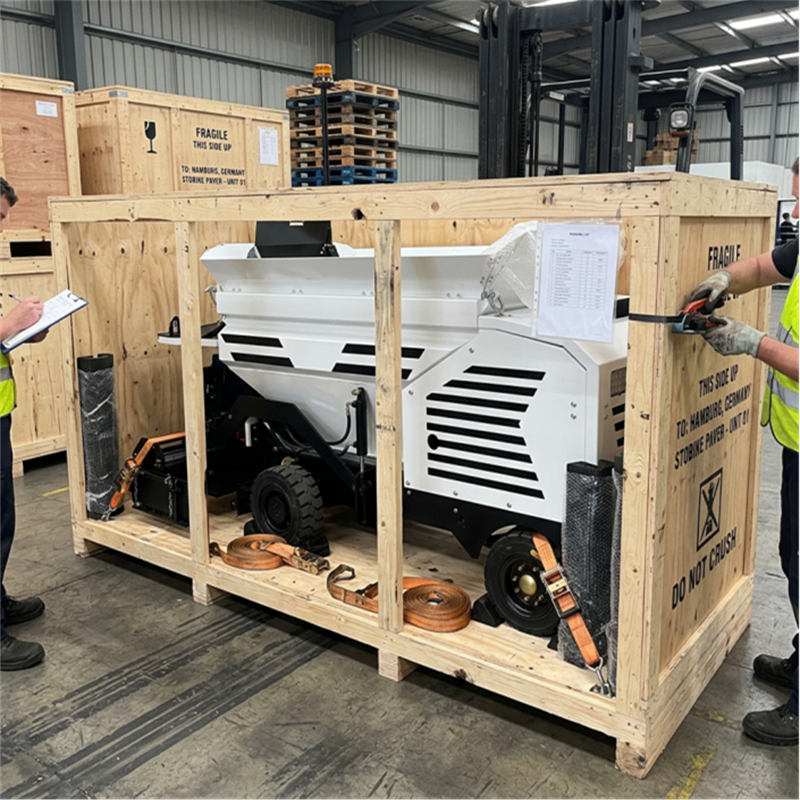

Packing and shipping

Packaging and Transportation

SDBM can provide suitable packaging and transportation solutions according to the machine configuration, order quantity, destination and customer requirements.

Export Packaging

Export wooden case packaging;

Protective film applied around the machine;

Protection against dust, scratches and surface contamination;

Proper securing of the engine, machine body and operating handle;

Inspection of documents and accessories before packing;

Loading arrangements for bulk orders according to available container space.

Transportation Options

Sea transportation;

Land transportation;

Air transportation;

Delivery to the customer’s designated port;

Delivery to the customer’s freight forwarder;

Delivery to a specified location where transport conditions allow.

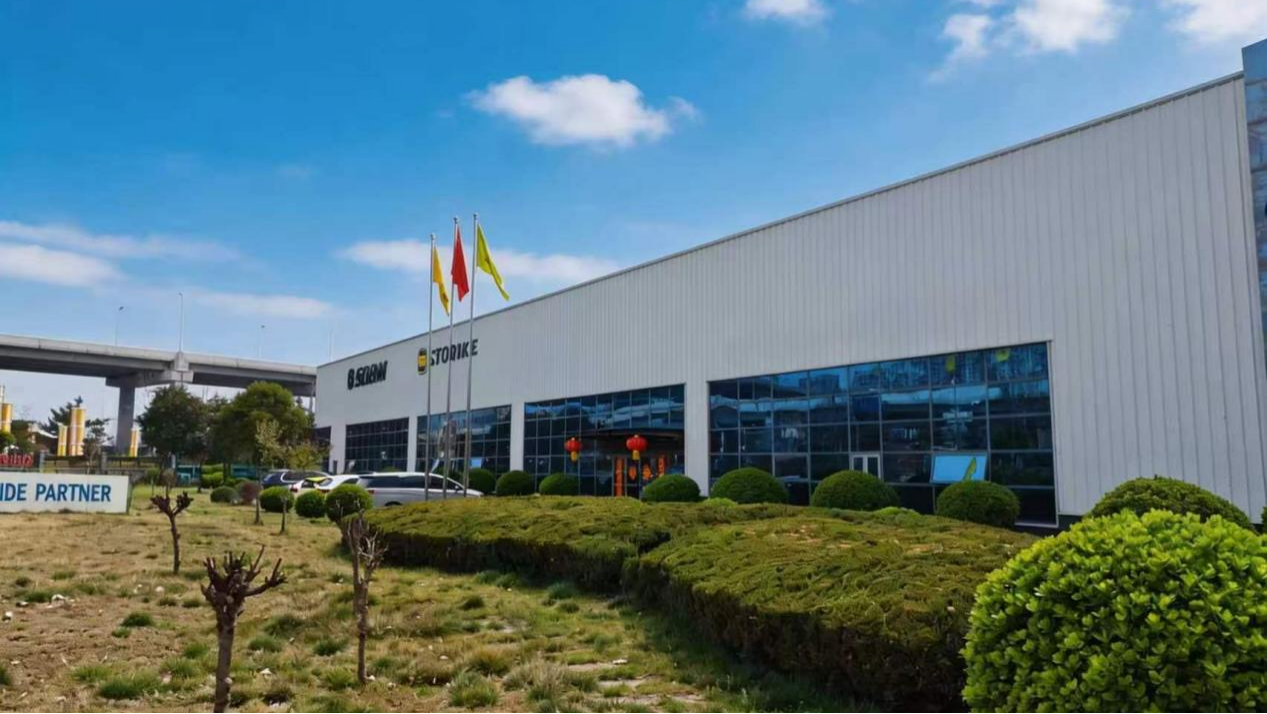

Shandong Benma Engineering Machinery Co., Ltd. is a leading player in the field of engineering machinery. Since our establishment, we have obtained ISO9001 quality system certification in 2002, underscoring our dedication to producing high-quality products. Our extensive product range includes road rollers, mobile lighting towers, hydraulic power units, compaction machinery, concrete machinery, and construction machinery.

At Shandong Benma Construction Machinery, we take pride in our advanced production equipment and our team of experienced technicians. Our products feature innovative designs, exceptional craftsmanship, robustness, and durability, which have garnered high acclaim from users worldwide. With a strong reputation, superior product quality, and attentive after-sales service, we have successfully attracted.

1. What engine options are available for the BMM155?

The BMM155 provides two reliable diesel engine options:

KOHLER KD1100F diesel engine

KUBOTA D722 diesel engine

The engine output power is:

KOHLER: 9.5 kW

KUBOTA: 10.2 kW

Both engines provide stable power output, excellent durability, and reliable performance for continuous paving operations.

2. What is the maximum paving capacity of the BMM155?

The BMM155 has a maximum paving capacity of 35 tons per hour (T/h).

Its efficient material feeding system and hydraulic control system help improve paving productivity and reduce construction time.

3. What paving width can the BMM155 achieve?

The BMM155 supports adjustable paving widths:

Minimum paving width: 300 mm

Standard paving width: 900–1450 mm

Maximum paving width: 1450 mm

This flexible adjustment allows the machine to adapt to different road construction requirements.

4. What paving thickness can the BMM155 handle?

The BMM155 supports an adjustable paving thickness range of:

5–100 mm

Operators can adjust the paving thickness according to different project requirements and asphalt layer specifications.

5. What is the hopper capacity of the BMM155?

The BMM155 is equipped with a 0.7 m³ hopper capacity, allowing continuous asphalt material supply and improving paving efficiency.

6. Does the BMM155 use a hydraulic control system?

Yes. The BMM155 adopts a professional hydraulic control system, including:

Hydraulic steering system

Hydraulic travel motor

Hydraulic scraper motor

Hydraulic control solenoid valve

The hydraulic system provides smooth operation, precise control, and excellent maneuverability.

7. What is the turning radius of the BMM155?

The BMM155 has an inside turning radius of 1140 mm.

This compact turning capability allows the machine to operate effectively in narrow construction areas and complex jobsite conditions.

8. What is the operating weight of the BMM155?

The operating weight of the BMM155 is 1450 kg, with a maximum working weight of 1520 kg.

The stable weight distribution provides excellent traction and reliable paving performance.

9. Is the BMM155 suitable for narrow construction areas?

Yes. The BMM155 is specially designed for areas with limited working space.

Its compact dimensions:

Length: 3015 mm

Width: 1220 mm

Height: 1495 mm

allow flexible transportation and operation in narrow roads, sidewalks, residential areas, and urban renovation projects.

10. What type of asphalt ironing system does the BMM155 use?

The BMM155 is equipped with a standard heat ironing board, which helps improve asphalt surface smoothness and achieve better paving quality.

11. What are the advantages of choosing the SDBM BMM155?

The SDBM BMM155 provides:

Reliable KOHLER / KUBOTA diesel engine options

35 T/h efficient paving capacity

Adjustable paving width and thickness

Hydraulic precision control

Compact structure for narrow areas

Stable paving performance

Easy operation and maintenance

12. Can SDBM provide OEM customization for the BMM155?

Yes. SDBM supports OEM and customized solutions according to customer requirements, including:

Machine color customization

Customer logo

Product configuration

Packaging requirements

13. Why choose SDBM Mini Asphalt Pavers?

SDBM provides:

Professional construction machinery manufacturing experience

Strict quality control

CE certified products

OEM & ODM customization

Competitive factory pricing

Global export support
